- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IX80G-B-10P
- Part Number IX80G-B-10P
- Manufacturer Hirose
- Pin Count 12
- Part Category Connector
- Package Category Other
- Footprint Name Other - IX80G-B-10P-3
- Released Date Apr 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IX80G-B-10P Details
-
Manufacturer Part Number:
IX80G-B-10P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
7.97
-
Connector Type:
TELECOM AND DATACOM CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Gold (Au)
IX80G-B-10P Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m (5 to 15 in-lbs) for the screws on the IX80G-B-10P connector.
-
Yes, the IX80G-B-10P connector is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace.
-
The operating temperature range of the IX80G-B-10P connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the IX80G-B-10P connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The mating cycle life of the IX80G-B-10P connector is 500 cycles minimum.
Trust Checks
Expert Contribution
System Verified
Community Approved
IX80G-B-10P Overview

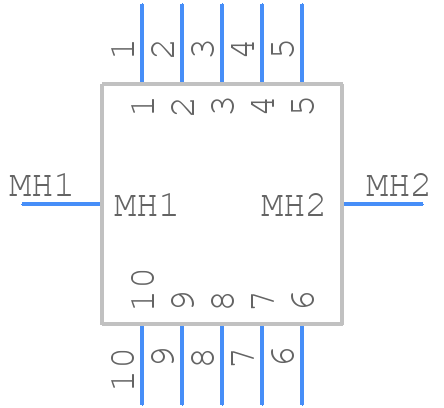

Use the download button to access the IX80G-B-10P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IX80G,
or try a keyword search, such as Telecom and Datacom Connectors
