IXA10-HF5F10-25.000MHZ - ILSI AMERICA

Description: ILSI AMERICA - IXA10-HF5F10-25.000MHZ - Crystal, 25 MHz, SMD, 1.6mm x 1.2mm, 30 ppm, 10 pF, 20 ppm, IXA10 Series

Download IXA10-HF5F10-25.000MHZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IXA10-HF5F10-25.000MHZ model

Email notifications will be applied after download.

Send part feedback

Symbol

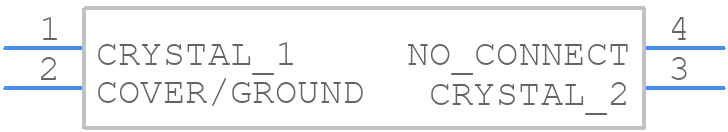

IXA10-HF5F10-25.000MHZ - ILSI AMERICA - PCB symbol

PCB Footprints

IXA10-HF5F10-25.000MHZ - ILSI AMERICA PCB footprint - Other - Other - IXA10-HF5F10-25.000MHZ-1

3D Models

IXA10-HF5F10-25.000MHZ - ILSI AMERICA - 3D model - Other - IXA10-HF5F10-25.000MHZ-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for IXA10-HF5F10-25.000MHZ
Part Number IXA10-HF5F10-25.000MHZ
Manufacturer ILSI AMERICA
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - IXA10-HF5F10-25.000MHZ-1
Released Date Sep 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IXA10-HF5F10-25.000MHZ Details

Manufacturer Part Number:
IXA10-HF5F10-25.000MHZ
Manufacturer:
ILSI America LLC

Trust Checks

Community Provided

System Verified

Community Approved

IXA10-HF5F10-25.000MHZ Overview

Use the download button to access the IXA10-HF5F10-25.000MHZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IXA10, or try a keyword search, such as Quartz Crystals
