For optimal performance, it is recommended to follow the PCB layout guidelines provided in the application note AN9311 from Littelfuse. This includes keeping the thermal pad connected to a solid ground plane, using a minimum of 2 oz copper thickness, and ensuring good thermal conductivity between the device and the PCB. Additionally, a thermal via array under the device can help to dissipate heat efficiently.
To ensure proper soldering, follow the recommended soldering profile provided in the datasheet. Use a solder with a melting point between 217°C to 220°C, and maintain a peak temperature of 240°C to 250°C for 10-30 seconds. Avoid using excessive solder, and ensure the soldering iron is clean and well-maintained. Inspect the solder joints for any defects, such as cold joints, bridges, or voids.
The IXDD604D2TR is a sensitive device and requires proper ESD protection and handling precautions. Handle the device by the body or pins, avoiding direct contact with the die. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Store the device in an anti-static bag or container, and avoid exposing it to high temperatures, humidity, or physical stress.
Yes, the IXDD604D2TR is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101, which ensures the device can withstand the harsh environmental conditions and reliability demands of the automotive industry. However, it is essential to follow the recommended operating conditions, and ensure the device is properly qualified and validated for the specific application.
Possible failure modes of the IXDD604D2TR include overheating, electrical overstress, and physical damage. To mitigate these failure modes, ensure proper thermal management, operate the device within the recommended specifications, and avoid exposing it to physical stress or electrical surges. Implementing overcurrent protection, overvoltage protection, and thermal monitoring can also help prevent failures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXDD604D2TR Overview

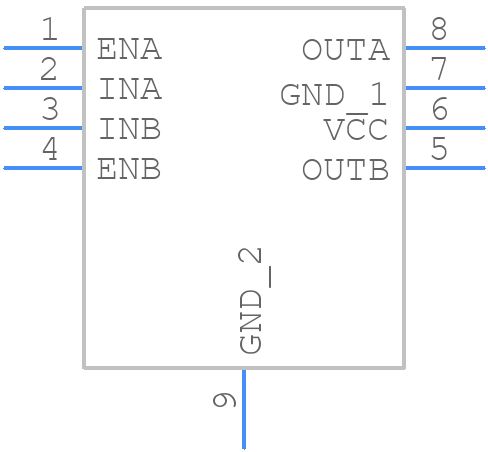

Use the download button to access the IXDD604D2TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXDD6,
or try a keyword search, such as MOSFET Drivers
