For optimal thermal performance, it is recommended to have a solid copper plane under the device, and to use thermal vias to connect the plane to the internal layers. Additionally, keeping the PCB traces and components away from the device's thermal pad can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help keep the device temperature within the recommended operating range.
The recommended soldering profile for the IXDI602D2TR is a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s). It is also recommended to use a solder with a melting point of 217°C (423°F) or higher.
The IXDI602D2TR is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. It is recommended to consult with Littelfuse's application engineers and to follow relevant industry standards and guidelines for such applications.
The IXDI602D2TR has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel and equipment, and using ESD protection devices such as wrist straps and mats.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXDI602D2TR Overview

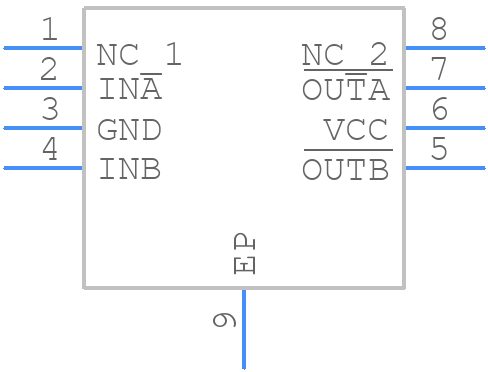

Use the download button to access the IXDI602D2TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXDI6,
or try a keyword search, such as MOSFET Drivers
