For optimal thermal performance, it is recommended to have a solid copper plane under the device, and to use thermal vias to connect the plane to the internal layers. Additionally, keeping the PCB traces away from the device's thermal pad can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help keep the device temperature within the recommended operating range.
The recommended soldering profile for the IXDI614SI is a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s). It is also recommended to use a solder with a melting point of 217°C (423°F) or higher.
The IXDI614SI is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. It is recommended to consult with Littelfuse's application engineers and to follow industry standards and guidelines for safety-critical designs.
To troubleshoot issues with the IXDI614SI, it is recommended to follow a systematic approach, starting with checking the device's pinout and connections, then verifying the input and output voltages and currents, and finally checking for any signs of physical damage or overheating. Littelfuse's application notes and technical support resources can also be helpful in troubleshooting issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXDI614SI Overview

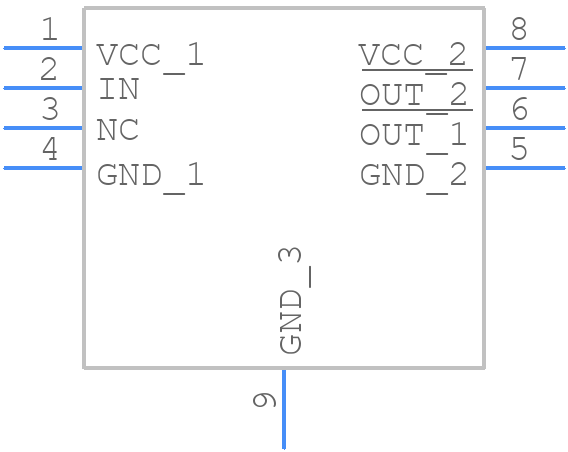

Use the download button to access the IXDI614SI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXDI6,
or try a keyword search, such as MOSFET Drivers
