- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IXDI614SITR
- Part Number IXDI614SITR
- Manufacturer LITTELFUSE
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SI (8-Pin Power SOIC with Exposed Metal Back
- Released Date Aug 20, 2024
- Last Modified Date Oct 6, 2025 1:29 PM UTC
- Pinout / Pin List Click Here (Member Only)
IXDI614SITR Details
-
Manufacturer Part Number:
IXDI614SITR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
8.1
-
High Side Driver:
NO
-
Interface IC Type:
BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
-
JESD-30 Code:
R-PDSO-G8
-
Length:
4.9 mm
IXDI614SITR Frequently Asked Questions (FAQs)
-
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, keep the PCB traces as short and wide as possible to minimize thermal resistance.
-
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate airflow, using a heat sink if necessary, and ensuring that the device is operated within its specified temperature range. Additionally, consider using a thermally conductive material, such as a thermal pad or thermal tape, to improve heat transfer between the device and the heat sink.
-
Exceeding the maximum junction temperature (Tj) rating can lead to a reduction in the device's lifespan, increased thermal resistance, and potentially even device failure. It is essential to ensure that the device is operated within its specified temperature range to maintain reliability and performance.
-
When selecting input and output capacitors for the IXDI614SITR, consider the following factors: capacitance value, voltage rating, ESR (Equivalent Series Resistance), and temperature rating. Choose capacitors with a voltage rating that exceeds the maximum input voltage, and ensure that the ESR is within the recommended range. Additionally, consider using X7R or X5R dielectric capacitors, which are suitable for high-frequency switching applications.
-
Not following the recommended pin connections and layout can lead to reduced performance, increased EMI (Electromagnetic Interference), and potentially even device failure. It is essential to follow the recommended pin connections and layout to ensure proper operation and minimize the risk of electrical noise and interference.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
IXDI614SITR Overview

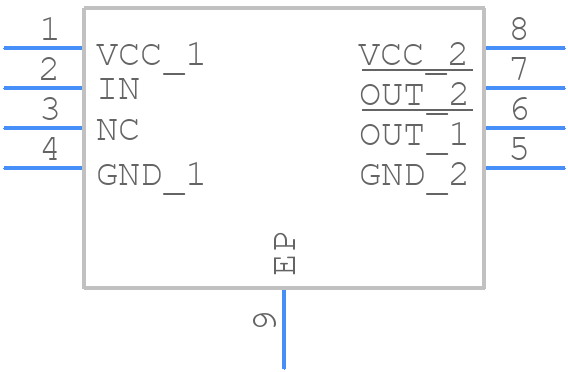

Use the download button to access the IXDI614SITR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXDI6,
or try a keyword search, such as MOSFET Drivers
