The recommended PCB footprint for the IXFH220N20X3 is a TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm. It's recommended to follow the PCB layout guidelines provided in the datasheet or application notes to ensure proper thermal performance and reliability.
The IXFH220N20X3 is rated for operation up to 150°C, but it's recommended to derate the device's current and voltage ratings at higher temperatures to ensure reliability and prevent thermal runaway. Consult the datasheet and application notes for specific derating guidelines.
Proper cooling of the IXFH220N20X3 is crucial to ensure reliable operation. Ensure good thermal contact between the device and the heat sink, and use a heat sink with a thermal resistance of ≤ 1°C/W. Also, consider using a thermal interface material (TIM) to fill any gaps between the device and heat sink. Consult the datasheet and application notes for specific thermal design guidelines.
The recommended gate drive voltage for the IXFH220N20X3 is 10-15V, with a maximum gate-source voltage of ±20V. Ensure the gate drive voltage is within the recommended range to prevent damage to the device and ensure proper switching performance.
Yes, the IXFH220N20X3 can be used in a parallel configuration to increase the overall current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate drive signals are synchronized to prevent uneven current sharing and potential damage to the devices. Consult the datasheet and application notes for specific guidelines on parallel operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXFH220N20X3 Overview

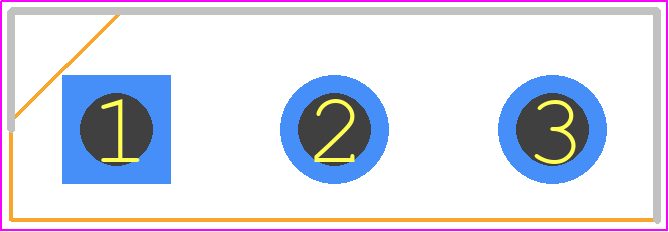

Use the download button to access the IXFH220N20X3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXFH2,
or try a keyword search, such as Power Field-Effect Transistors
