The recommended PCB footprint for the IXFH22N50P is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a thermal pad of 2.5mm x 2.5mm. The pad should be solder-mask defined and have a non-solder-mask-defined area of 1.5mm x 1.5mm for the thermal tab.
To ensure reliable soldering of the IXFH22N50P, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a reflow oven with a peak temperature of 240°C to 250°C, and ensure that the component is properly aligned with the PCB pads.
The maximum allowed voltage transient for the IXFH22N50P is 50V for a duration of 100ns, with a maximum repetition rate of 100kHz. Exceeding this limit may cause damage to the device.
The IXFH22N50P is rated for operation up to 150°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 125°C to ensure reliable operation. Consult the datasheet for more information on thermal derating.
The power dissipation of the IXFH22N50P can be calculated using the formula: Pd = (Vds x Ids) + (Vgs x Igs), where Vds is the drain-to-source voltage, Ids is the drain current, Vgs is the gate-to-source voltage, and Igs is the gate current. Consult the datasheet for more information on power dissipation calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXFH22N50P Overview

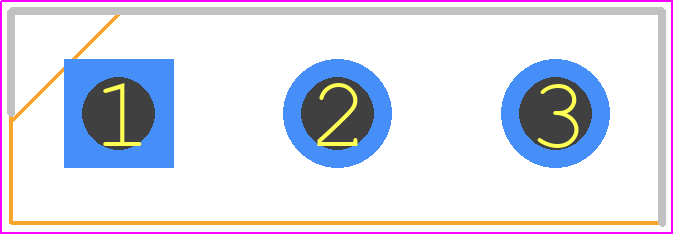

Use the download button to access the IXFH22N50P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXFH2,
or try a keyword search, such as Power Field-Effect Transistors
