The recommended PCB footprint for IXFH22N60P3 is a TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm. It's essential to follow the recommended footprint to ensure proper heat dissipation and electrical connection.
While IXFH22N60P3 is a fast-switching IGBT, it's not recommended for high-frequency switching applications above 100 kHz. The device is optimized for switching frequencies up to 50 kHz. Using it at higher frequencies may lead to increased losses and reduced reliability.
To ensure the reliability of IXFH22N60P3 in a high-temperature environment, it's essential to follow the recommended operating temperature range (-40°C to 150°C) and derate the device's power handling accordingly. Additionally, ensure proper heat sinking, and consider using a thermal interface material to reduce thermal resistance.
The recommended gate drive voltage for IXFH22N60P3 is between 10V and 15V. A higher gate drive voltage can reduce the turn-on time, but it may also increase the power losses. It's essential to optimize the gate drive voltage based on the specific application requirements.
Yes, you can parallel multiple IXFH22N60P3 devices to increase the current handling, but it's crucial to ensure that the devices are properly matched and synchronized to avoid uneven current sharing. Additionally, the gate drive circuitry and layout should be designed to minimize the differences in switching times and voltage drops.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXFH22N60P3 Overview

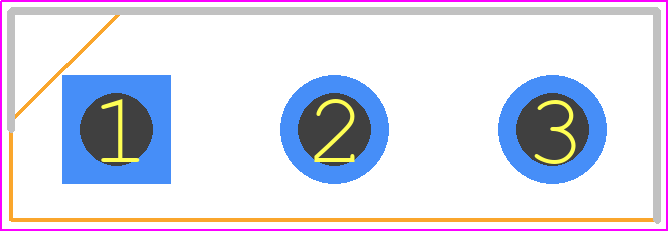

Use the download button to access the IXFH22N60P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXFH2,
or try a keyword search, such as Power Field-Effect Transistors
