IXFH270N06T3 - LITTELFUSE

Description: MOSFET 60V/270A TrenchT3

Download IXFH270N06T3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IXFH270N06T3 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

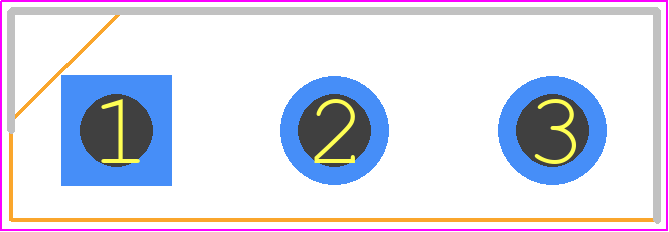

IXFH270N06T3 - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247 (IXFH)
click to zoom
3D Models
IXFH270N06T3 - LITTELFUSE - 3D model - Transistor Outline, Vertical - TO-247 (IXFH)
click to zoom

IXFH270N06T3 Details

  • Manufacturer Part Number:

    IXFH270N06T3

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    1500 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    270 A

  • Drain-source On Resistance-Max:

    0.0031 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    62 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    480 W

  • Pulsed Drain Current-Max (IDM):

    675 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IXFH270N06T3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IXFH270N06T3 is a standard TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • Yes, IXFH270N06T3 is suitable for high-frequency switching applications up to 100 kHz due to its low switching losses and fast switching times. However, it's essential to consider the device's thermal performance and ensure proper cooling.
  • To ensure the reliability of IXFH270N06T3 in a high-temperature environment, it's essential to follow the recommended operating temperature range (-40°C to 150°C), provide adequate cooling, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • The recommended gate drive voltage for IXFH270N06T3 is between 10V and 15V, with a maximum gate-source voltage of ±20V. A higher gate drive voltage can improve switching performance, but it's essential to ensure the gate driver is capable of providing the required voltage.
  • Yes, IXFH270N06T3 can be used in a parallel configuration to increase current handling. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing.
