The recommended PCB footprint for IXFP3N120 is a standard TO-220 package with a minimum pad size of 2.5mm x 2.5mm and a thermal pad size of 4.5mm x 4.5mm.
Yes, IXFP3N120 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, thermal performance, and PCB layout to ensure reliable operation.
To ensure reliability in high-temperature environments, it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using a thermal interface material, and keeping the device within its recommended operating temperature range.
Yes, you can parallel multiple IXFP3N120 devices to increase current handling, but it's essential to ensure that the devices are properly matched, and the PCB layout is designed to minimize current imbalance and thermal gradients.
The recommended gate drive voltage for IXFP3N120 is between 10V and 15V, with a minimum gate drive current of 100mA to ensure reliable switching.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXFP3N120 Overview

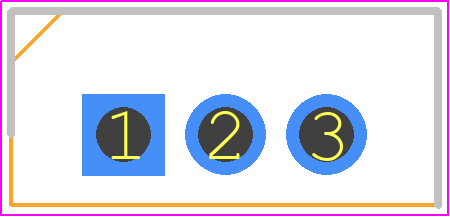

Use the download button to access the IXFP3N120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXFP3,
or try a keyword search, such as Power Field-Effect Transistors
