The recommended PCB footprint for the IXFT100N30X3HV is a TO-247-3L package with a minimum pad size of 5.5mm x 4.5mm and a thermal pad size of 3.5mm x 3.5mm. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
Yes, the IXFT100N30X3HV is suitable for high-reliability applications. Littelfuse Inc. has qualified this device to meet the requirements of AEC-Q101, which ensures that it meets the stringent reliability standards of the automotive industry. Additionally, the device is manufactured using a robust process that minimizes defects and ensures consistent performance.
To ensure proper cooling, it's essential to provide a sufficient heat sink and to follow the recommended thermal design guidelines. The IXFT100N30X3HV has a thermal resistance (RθJC) of 1.5°C/W, which means that it can dissipate up to 100W of power with a proper heat sink. You should also ensure that the device is mounted correctly and that the thermal interface material (TIM) is applied correctly to minimize thermal resistance.
Yes, the IXFT100N30X3HV is suitable for high-frequency switching applications. The device has a fast switching time (trr) of 35ns, which makes it suitable for high-frequency switching applications up to 100kHz. However, you should ensure that the device is properly snubbed to prevent ringing and oscillations, and that the PCB layout is optimized to minimize parasitic inductance and capacitance.
The recommended gate drive voltage for the IXFT100N30X3HV is 15V. This ensures that the device is fully enhanced and that the switching time is minimized. However, you can also use a lower gate drive voltage, such as 10V or 12V, depending on your specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXFT100N30X3HV Overview

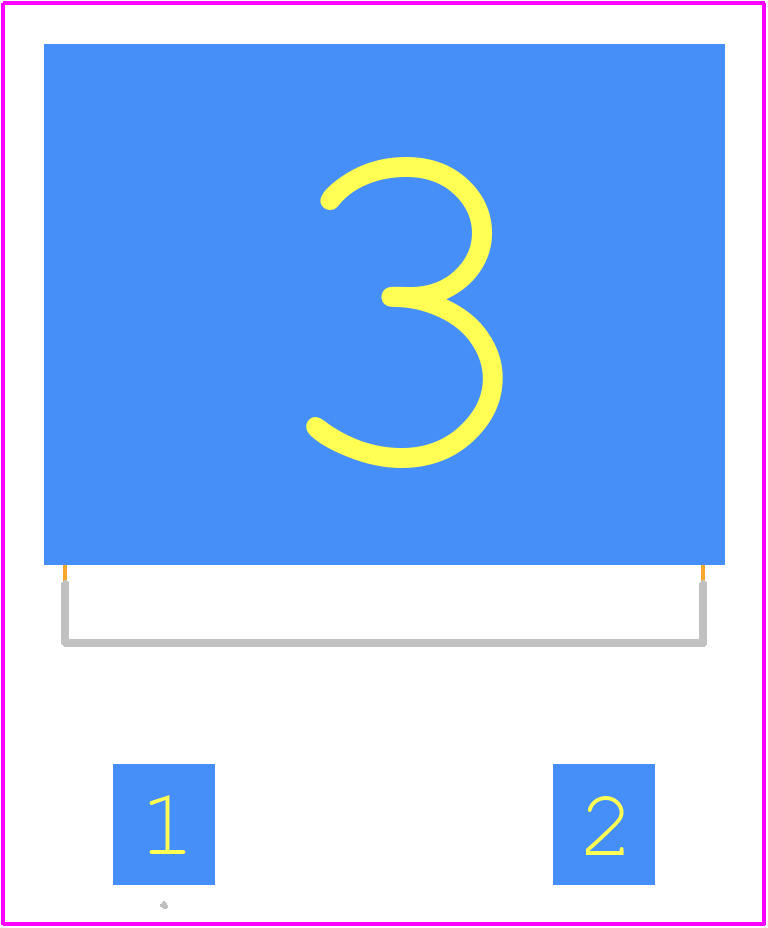

Use the download button to access the IXFT100N30X3HV schematic symbol, PCB footprint, and 3D model.
