IXTK32P60P - LITTELFUSE

Description: MOSFET -32 Amps -600V 0.350 Rds

Download IXTK32P60P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

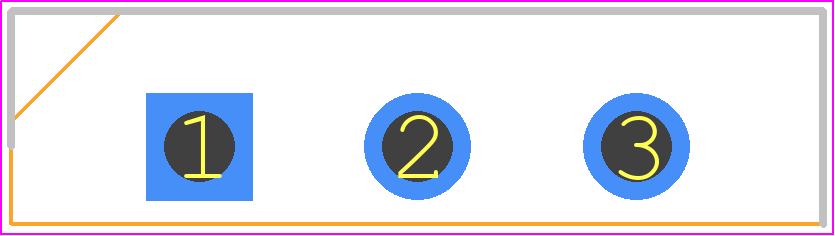

IXTK32P60P - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-264 (IXTK)_1
click to zoom
3D Models
IXTK32P60P - LITTELFUSE  - 3D model - Transistor Outline, Vertical - TO-264 (IXTK)_1
click to zoom

IXTK32P60P Details

  • Manufacturer Part Number:

    IXTK32P60P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.95

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    3500 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    32 A

  • Drain-source On Resistance-Max:

    0.35 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    77 pF

  • JEDEC-95 Code:

    TO-264AA

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    890 W

  • Pulsed Drain Current-Max (IDM):

    96 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IXTK32P60P Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the IXTK32P60P is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux to the pads. Also, ensure the PCB is clean and free of oxidation.
  • The maximum surge current rating for the IXTK32P60P is 100A for 10/1000μs, as per the IEC 61000-4-5 standard.
  • Yes, the IXTK32P60P is rated for operation up to 150°C, but derating is required above 125°C. Consult the datasheet for specific derating curves.
  • To select the correct fuse, consider factors such as the maximum available fault current, the nominal operating current, and the required response time. Consult the datasheet and application notes for guidance.
