IXTT140N10P - LITTELFUSE

Description: Trans MOSFET N-CH 100V 140A 3-Pin(2+Tab) TO-268 ""

Download IXTT140N10P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

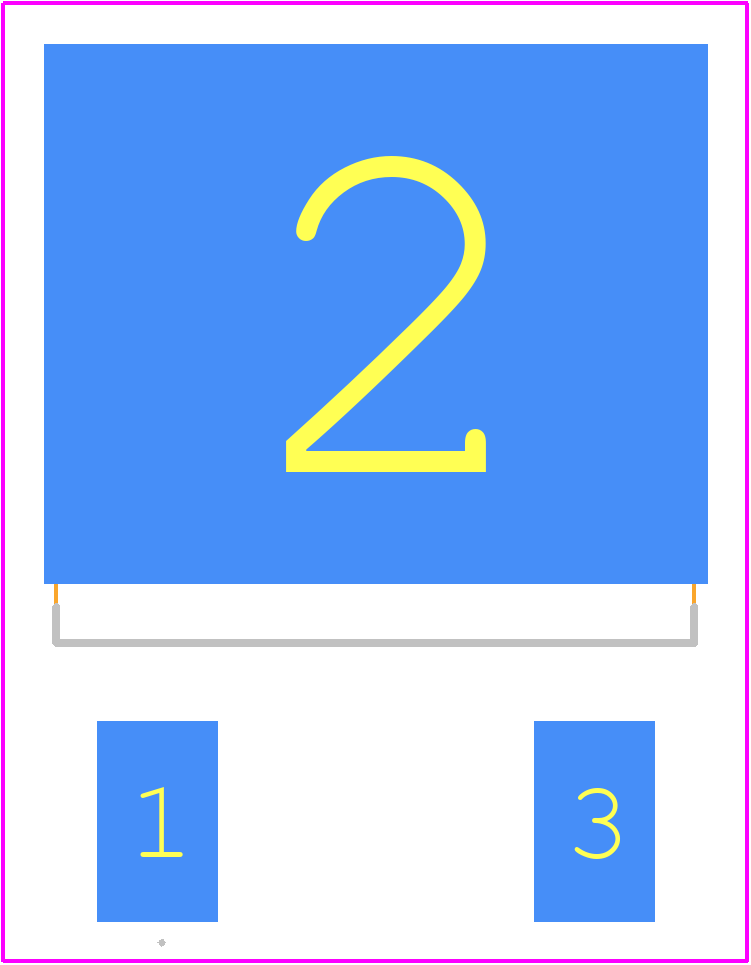

IXTT140N10P - LITTELFUSE PCB footprint - Other - Other - IXTT140N10P-2
click to zoom
3D Models
IXTT140N10P - LITTELFUSE  - 3D model - Other - IXTT140N10P-2
click to zoom

IXTT140N10P Details

  • Manufacturer Part Number:

    IXTT140N10P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.85

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    2500 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    140 A

  • Drain-source On Resistance-Max:

    0.011 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-268AA

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    600 W

  • Pulsed Drain Current-Max (IDM):

    300 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IXTT140N10P Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IXTT140N10P is a standard TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • Yes, IXTT140N10P is suitable for high-frequency switching applications up to 100 kHz due to its low switching losses and fast recovery time.
  • To ensure reliable operation of IXTT140N10P in high-temperature environments, it is recommended to derate the device's power rating according to the temperature derating curve provided in the datasheet, and to ensure good thermal management through proper heat sinking and airflow.
  • Yes, IXTT140N10P is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended gate drive voltage for IXTT140N10P is 10-15V, with a maximum gate-source voltage of 20V.
