Part Image

IZ1205S - XP POWER

Description: XP Power Through Hole 3W Isolated DC-DC Converter, Vin 9 → 18 V dc, I/O isolation 1.6kV dc, Vout ±5V dc

Download IZ1205S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

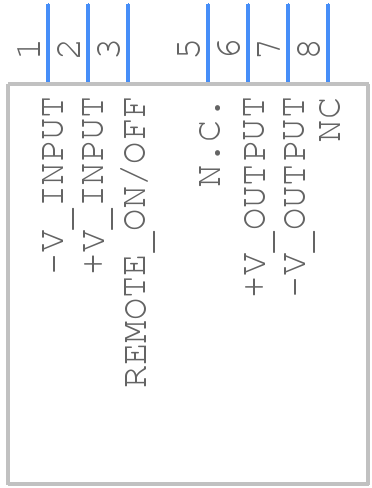

Symbol
IZ1205S - XP POWER - PCB symbol
click to zoom
PCB Footprints
IZ1205S - XP POWER PCB footprint - Other - Other - IZ Series_S
click to zoom
3D Models
IZ1205S - XP POWER - 3D model - Other - IZ Series_S
click to zoom

IZ1205S Details

  • Manufacturer Part Number:

    IZ1205S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-7

  • Pin Count:

    8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -5V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IZ1205S Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IZ1205S is 10uF. Exceeding this value may affect the stability of the output voltage.
  • While the IZ1205S has a high operating temperature range of -40°C to +85°C, it's recommended to derate the output power by 2.5% per °C above 60°C to ensure reliable operation.
  • The IZ1205S meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module is used within its specified ratings and guidelines.
  • To minimize EMI, it's recommended to follow the layout and placement guidelines provided in the XP Power application note, including keeping the input and output tracks separate, using a solid ground plane, and placing the module away from noise-sensitive components.
  • Yes, the IZ1205S can be paralleled to increase the output power, but it's essential to ensure that the modules are identical and that the output voltages are matched to within 1% to prevent uneven current sharing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IZ1205S Overview

Use the download button to access the IZ1205S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IZ120, or try a keyword search, such as Power Supply Modules
