XP Power recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up voltage to prevent inrush currents and ensure a smooth start-up.
The IZ2415S can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillations.
While the IZ2415S is rated for operation up to 85°C, XP Power recommends derating the output power by 1.5% per degree above 70°C to ensure reliable operation in high-temperature environments.
To troubleshoot output voltage deviations or instability issues, XP Power recommends checking the input voltage, output load, and PCB layout for any anomalies or noise sources that may be affecting the IZ2415S's performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IZ2415S Overview

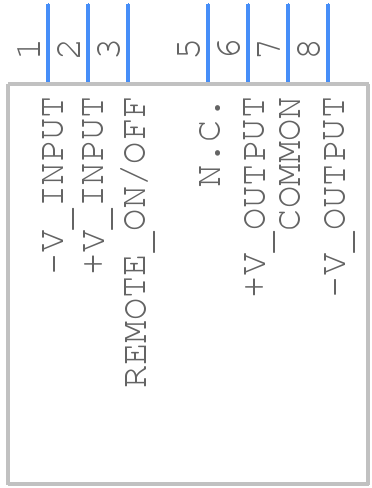

Use the download button to access the IZ2415S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IZ241,
or try a keyword search, such as Power Supply Modules
