J115F2E1CS12DSX.9BC - CIT Relay & Switch

J115F2E1CS12DSX.9BC Details

• Manufacturer Part Number:

  J115F2E1CS12DSX.9BC

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• Manufacturer:

  CIT Relay & Switch

• Additional Feature:

  PANEL MOUNTABLE

• Body Breadth:

  26.8 mm

• Body Height:

  28.1 mm

• Body Length or Diameter:

  31.9 mm

• Coil Current(DC)-Max:

  0.075 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  900 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  160 Ω

• Coil Voltage(DC)-Max:

  15.6 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  7200VA@277VAC

• Contact (AC) Max Rating R Load:

  30A@240VAC

• Contact Current(AC)-Max:

  30 A

• Contact Current(DC)-Max:

  30 A

• Contact (DC) Max Power Rating R Load:

  840W@110VDC

• Contact (DC) Max Rating R Load:

  30A@14VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  240 V

• Contact Voltage(DC)-Max:

  14 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER CADMIUM OXIDE

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

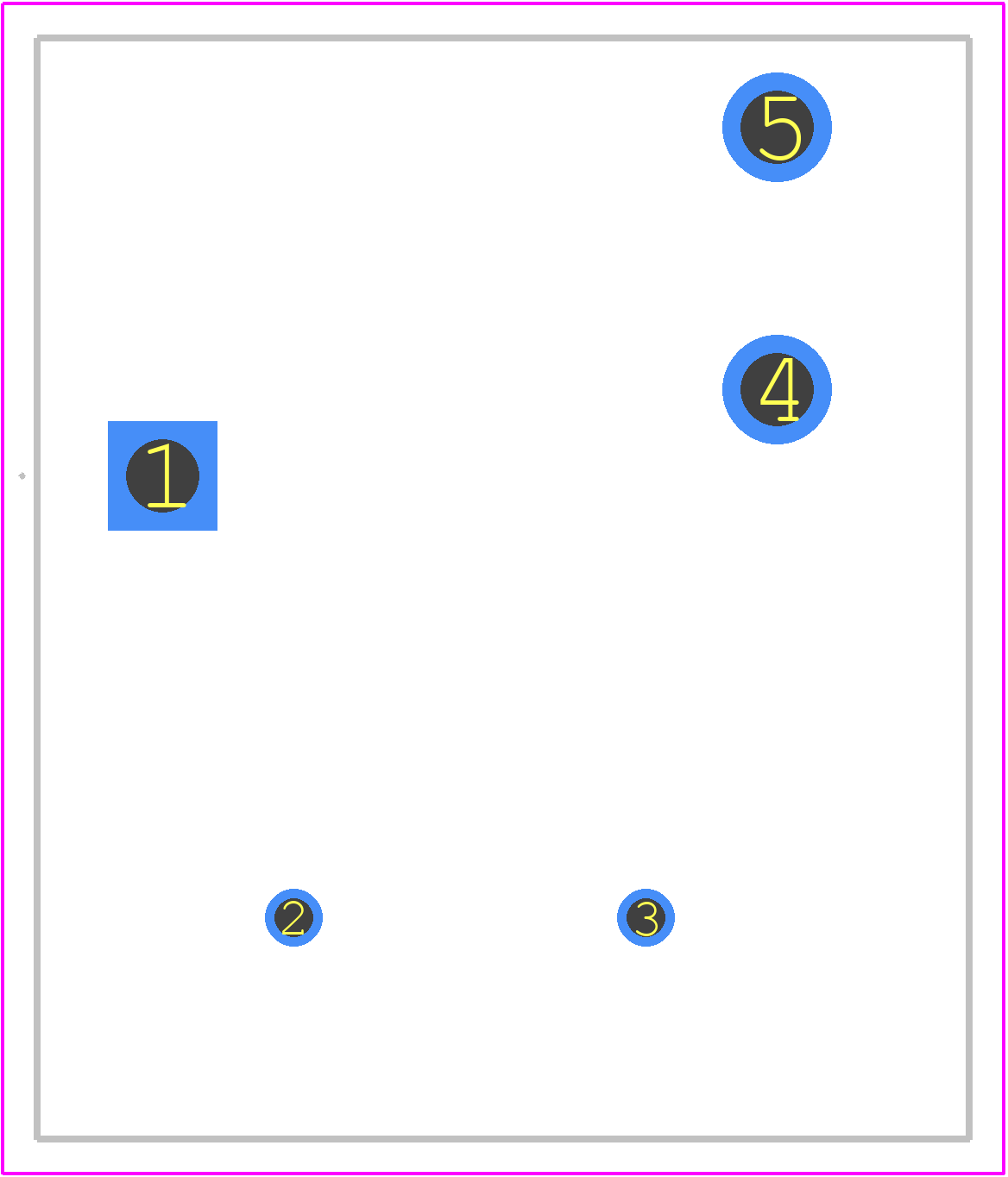

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  31.9mm x 26.8mm x 28.1mm

• Reference Standard:

  CUL; UL

• Relay Action:

  MOMENTARY

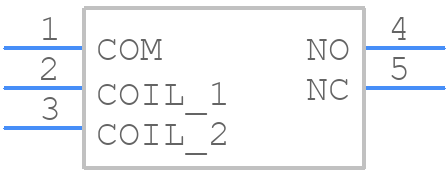

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004241808483616967 inch

• Termination Type:

  SOLDER/QUICK CONNECT
