JA4429-AL - COILCRAFT

Description: Audio Transformers / Signal Transformers JA4429 for LT3799 24uH 24 V 1.3A , –40°C to +85°C

Download JA4429-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

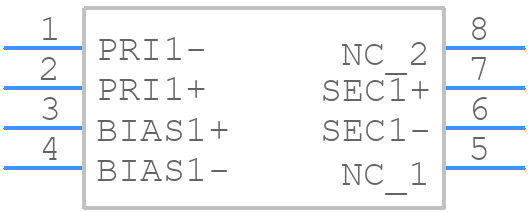

Symbol
JA4429-AL - COILCRAFT - PCB symbol
click to zoom

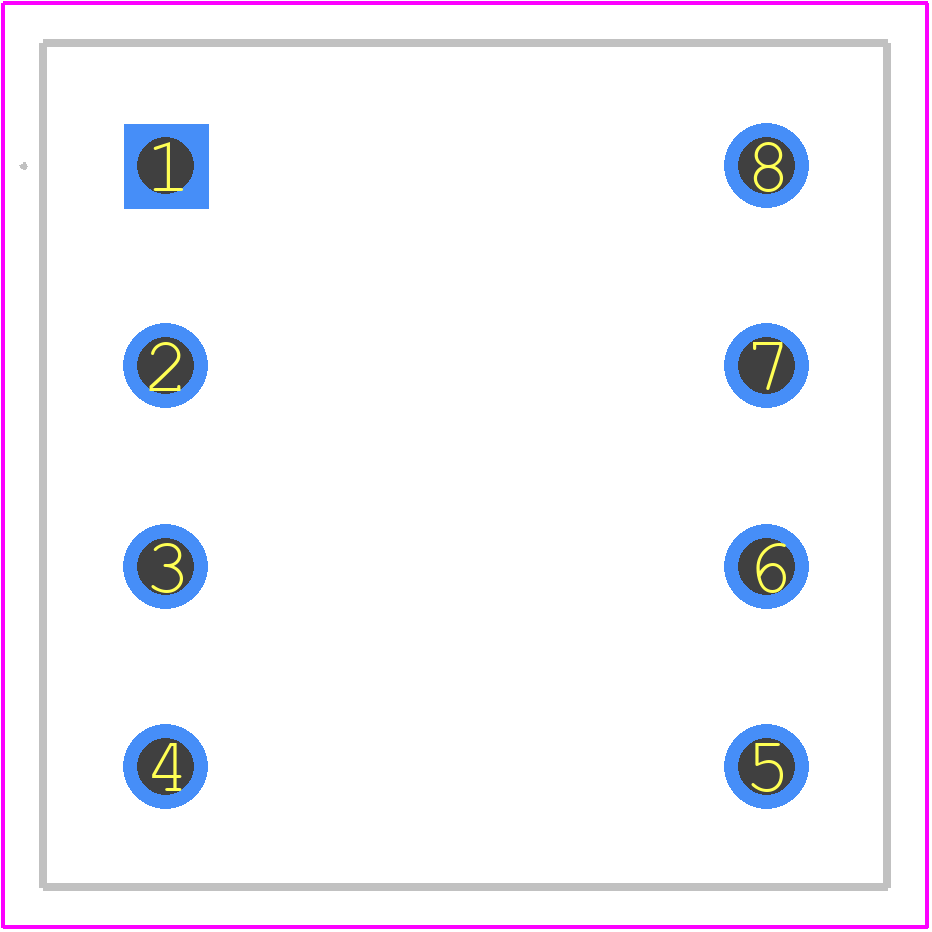

PCB Footprints
JA4429-AL - COILCRAFT PCB footprint - Other - Other - JA4429-AL-4
click to zoom
3D Models
JA4429-AL - COILCRAFT - 3D model - Other - JA4429-AL-4
click to zoom

JA4429-AL Details

  • Manufacturer Part Number:

    JA4429-AL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Height:

    17.3 mm

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Length:

    21.1 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    24 V

  • Packing Method:

    TRAY

  • Power Rating:

    24 W

  • Primary Inductance:

    400 µH

  • Surface Mount:

    NO

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    21.1 mm

JA4429-AL Frequently Asked Questions (FAQs)

  • The recommended land pattern for JA4429-AL is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, JA4429-AL is rated for operation up to 125°C, making it suitable for high-temperature applications. However, derating may be necessary for extreme temperature conditions.
  • Yes, JA4429-AL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum current rating for JA4429-AL is 2.5 A, but this may vary depending on the specific application and operating conditions.
  • Yes, JA4429-AL is designed for high-frequency applications and has a self-resonant frequency of 100 MHz, making it suitable for use in high-frequency circuits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JA4429-AL Overview

Use the download button to access the JA4429-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JA442, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
