JA4456-DLB - COILCRAFT

Description: Audio Transformers / Signal Transformers JA4456 Flyback For TI TPS23752

Download JA4456-DLB Model

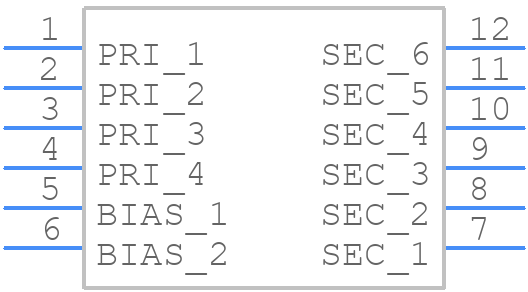

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

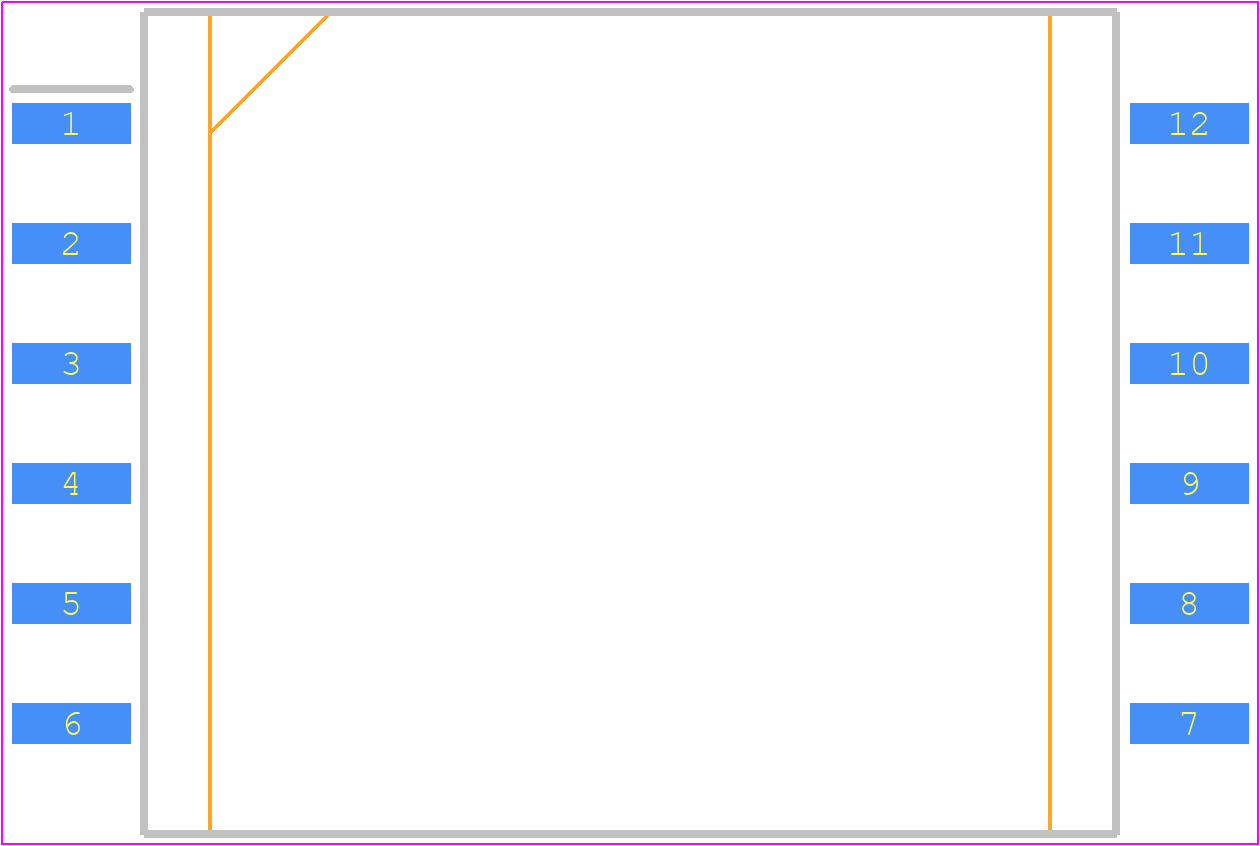

PCB Footprints
JA4456-DLB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - JA4456-DLB
click to zoom
3D Models
JA4456-DLB - COILCRAFT  - 3D model - Small Outline Packages - JA4456-DLB
click to zoom

JA4456-DLB Details

  • Manufacturer Part Number:

    JA4456-DLB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Height:

    12.7 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    36 V

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Packing Method:

    TR

  • Power Rating:

    25 W

  • Primary Inductance:

    70 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

JA4456-DLB Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a minimum pad size of 2.2 mm x 1.4 mm and a non-solder mask defined (NSMD) pad shape to ensure reliable assembly and minimize thermal resistance.
  • While the JA4456-DLB is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the inductor's performance and reliability in high-temperature applications.
  • To minimize the impact of mechanical stress, follow proper handling and assembly procedures, such as avoiding bending or flexing the component, and using a secure and even soldering process. Additionally, consider using a stress-relieving component or a more robust inductor design if the application is prone to mechanical stress.
  • The ESR of the JA4456-DLB is not explicitly stated in the datasheet, but it can be estimated using the inductor's DC resistance (Rdc) and the impedance curves provided. A rough estimate of ESR can be calculated as ESR ≈ Rdc / (2 * π * f), where f is the operating frequency.
  • While the JA4456-DLB is rated for a maximum current of 4.5 A, it's crucial to consider the inductor's saturation characteristics, temperature rise, and derating curves to ensure reliable operation in high-current applications. Additionally, consider using a more robust inductor design or a different component if the application requires higher current handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JA4456-DLB Overview

Use the download button to access the JA4456-DLB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JA445, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
