JA4456-DLD footprint, schematic symbol and 3D model by COILCRAFT

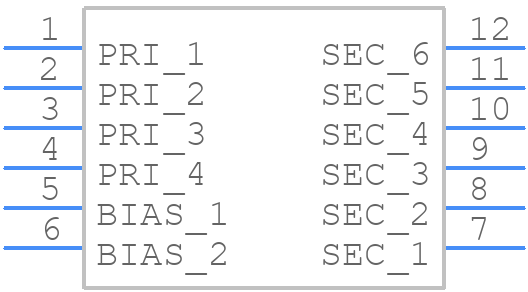

Symbol

click to zoom

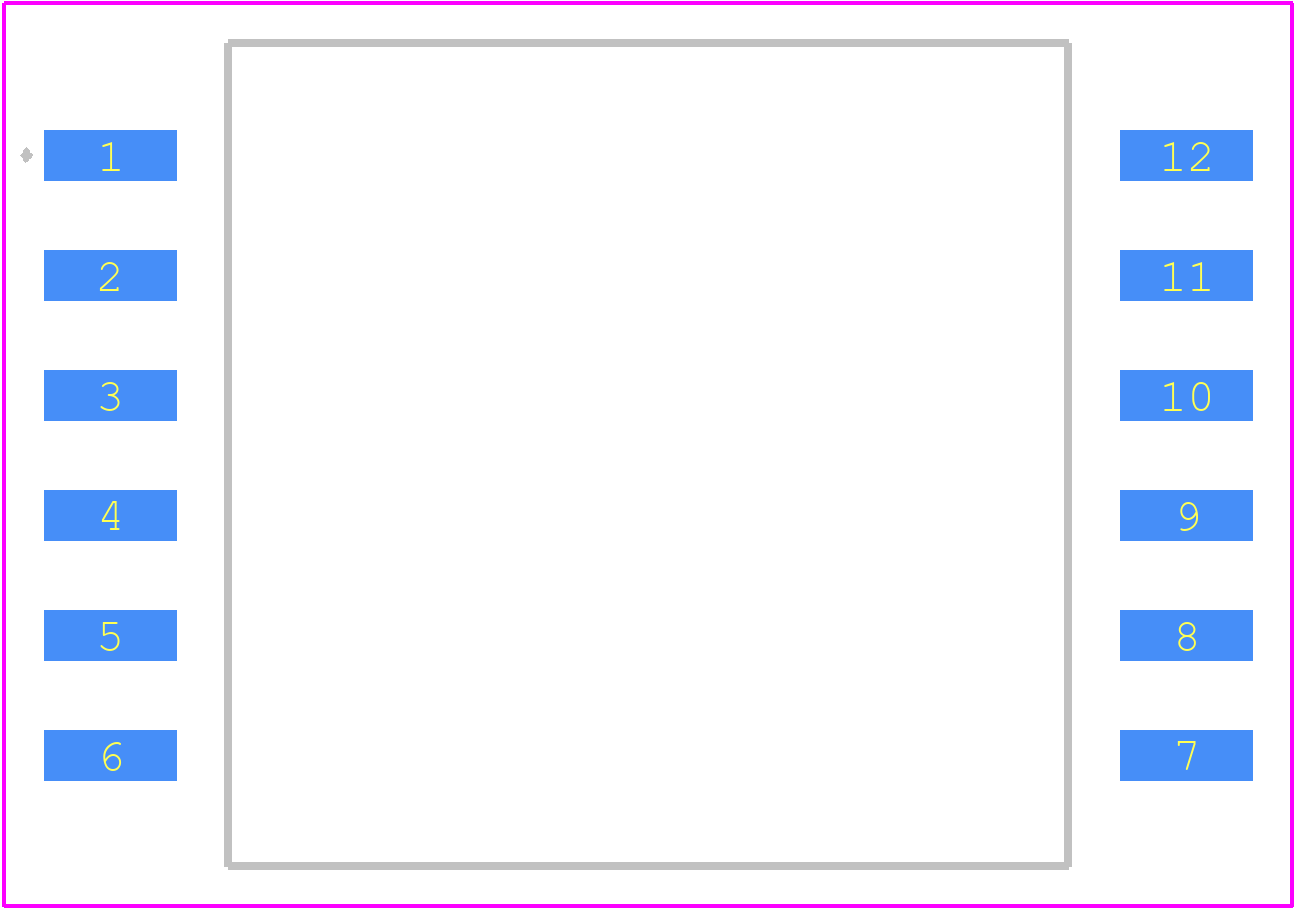

PCB Footprints

JA4456-DLD - COILCRAFT PCB footprint - Other - Other - JA4456-DLD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JA4456-DLD
Part Number JA4456-DLD
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - JA4456-DLD-2
Released Date Aug 13, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JA4456-DLD Details

Manufacturer Part Number:
JA4456-DLD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.3
Height:
12.7 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Output Voltage 2:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
25 W
Primary Inductance:
70 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Matte Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
20.57 mm

JA4456-DLD Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a minimum pad size of 2.5 mm x 1.5 mm and a non-solder mask defined (NSMD) pad to ensure reliable soldering and to prevent solder from flowing under the component.
The JA4456-DLD is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating curves and guidelines.
Handle the component by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to minimize mechanical stress. Store the components in a dry, cool place, away from direct sunlight and moisture.
The ESR of the JA4456-DLD is not explicitly stated in the datasheet, but it can be estimated using the Q factor and inductance values. A rough estimate is around 0.1-0.2 ohms at the resonant frequency.
The JA4456-DLD is designed for high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at frequencies above 500 MHz due to skin effect and proximity effect. Consult the datasheet for specific frequency characteristics.

Trust Checks

Community Provided

System Verified

Community Approved

JA4456-DLD Overview

Use the download button to access the JA4456-DLD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like JA445, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
