JAN1N5415 - Microsemi Corporation

Description: VOIDLESS HERMETICALLY SEALED FAST RECOVERY GLASS RECTIFIERS

Download JAN1N5415 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

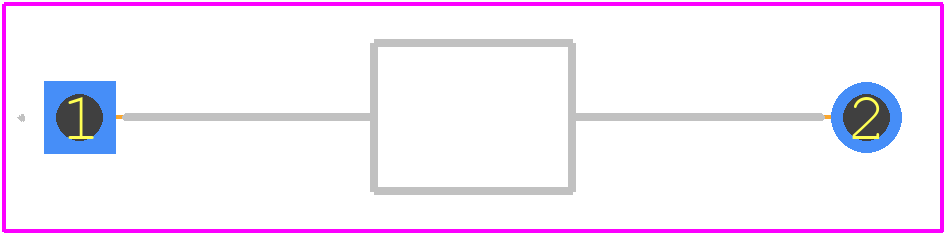

JAN1N5415 - Microsemi Corporation PCB footprint - Other - Other - JAN1N5415-3
click to zoom

JAN1N5415 Details

  • Manufacturer Part Number:

    JAN1N5415

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    DO-41

  • Package Description:

    HERMETIC SEALED, GLASS, B PACKAGE-2

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    FAST RECOVERY

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.5 V

  • JESD-30 Code:

    O-LALF-W2

  • JESD-609 Code:

    e0

  • Non-rep Pk Forward Current-Max:

    80 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    GLASS

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    MIL-19500

  • Rep Pk Reverse Voltage-Max:

    50 V

  • Reverse Current-Max:

    1 µA

  • Reverse Recovery Time-Max:

    0.15 µs

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

JAN1N5415 Frequently Asked Questions (FAQs)

  • The recommended mounting torque for the JAN1N5415 is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper thermal and mechanical connection.
  • While the JAN1N5415 is a fast-switching diode, it's not recommended for high-frequency switching applications above 100 kHz due to its relatively high reverse recovery time (trr) of 50 ns.
  • To prevent ESD damage, handle the JAN1N5415 with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in a conductive container or bag when not in use.
  • The JAN1N5415 has a maximum allowable voltage derating of 80% of its rated voltage (1500 V) for reliable operation. Exceeding this derating may reduce the device's lifespan or cause premature failure.
  • The JAN1N5415 is rated for operation up to 200°C (TJ). However, it's essential to consider the device's power dissipation and thermal resistance when operating in high-temperature environments to prevent thermal runaway or damage.
