JAN1N5802US - Microsemi Corporation

Description: Diode Switching 50V 2.5A 2-Pin A-MELF Bag Voidless Hermetically Sealed Ultrafast Recovery Glass Rectifiers

Download JAN1N5802US Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JAN1N5802US - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

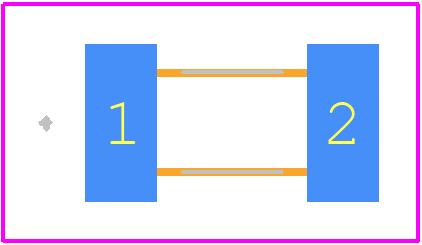

JAN1N5802US - Microsemi Corporation PCB footprint - Other - Other - JAN1N5802US-1
click to zoom

JAN1N5802US Details

  • Manufacturer Part Number:

    JAN1N5802US

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Application:

    ULTRA FAST RECOVERY POWER

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • JESD-30 Code:

    O-LELF-R2

  • Non-rep Pk Forward Current-Max:

    35 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    GLASS

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    MIL-19500/477F

  • Reverse Recovery Time-Max:

    0.025 µs

  • Surface Mount:

    YES

  • Terminal Form:

    WRAP AROUND

  • Terminal Position:

    END
