JCA0205S05 - XP POWER

Description: XP Power JCA 2W Isolated DC-DC Converter Through Hole, Vin 4.5 → 9 V dc, Vout 5V dc, I/O isolation 1.5kV dc

Download JCA0205S05 Model

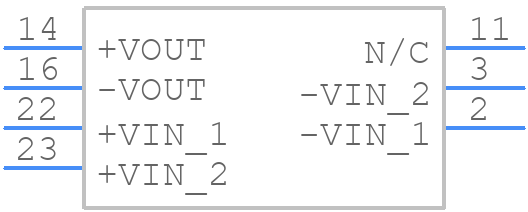

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JCA0205S05 - XP POWER PCB footprint - Other - Other - JCA0205S05-2
click to zoom
3D Models
JCA0205S05 - XP POWER  - 3D model - Other - JCA0205S05-2
click to zoom

JCA0205S05 Details

  • Manufacturer Part Number:

    JCA0205S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

JCA0205S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary.
  • The derating curve for JCA0205S05 is available in the XP Power application note, which shows the reduction in output power with increasing ambient temperature. Engineers should consult this curve to ensure the module operates within its specified ratings.
  • While the JCA0205S05 is designed to meet standard vibration and shock requirements, XP Power recommends consulting their application engineers for specific guidance on using the module in extreme environmental conditions.
  • XP Power recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output, and following the guidelines in the datasheet for capacitor selection and placement.
