XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the JCA0412D02 is designed to withstand high-vibration environments. It has been tested to meet the IEC 60068-2-6 standard for vibration, which includes sinusoidal vibration at 10-2000 Hz, 10 G peak acceleration, and random vibration at 10-2000 Hz, 5 G RMS acceleration.
To ensure the input voltage is within the specified range, XP Power recommends using a voltage regulator or a DC-DC converter with a tight output voltage tolerance. Additionally, the input voltage should be monitored and protected against overvoltage and undervoltage conditions using voltage monitoring ICs or protection circuits.
The maximum capacitance on the output of the JCA0412D02 is 2200 uF. Exceeding this value may cause instability or oscillation in the module. It is recommended to use a capacitance value that is within the specified range to ensure stable operation.
Yes, the JCA0412D02 can be used in a redundant configuration to achieve high reliability and availability. XP Power recommends using a redundant architecture with diode ORing or active ORing to ensure that the output voltage remains stable even in the event of a module failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCA0412D02 Overview

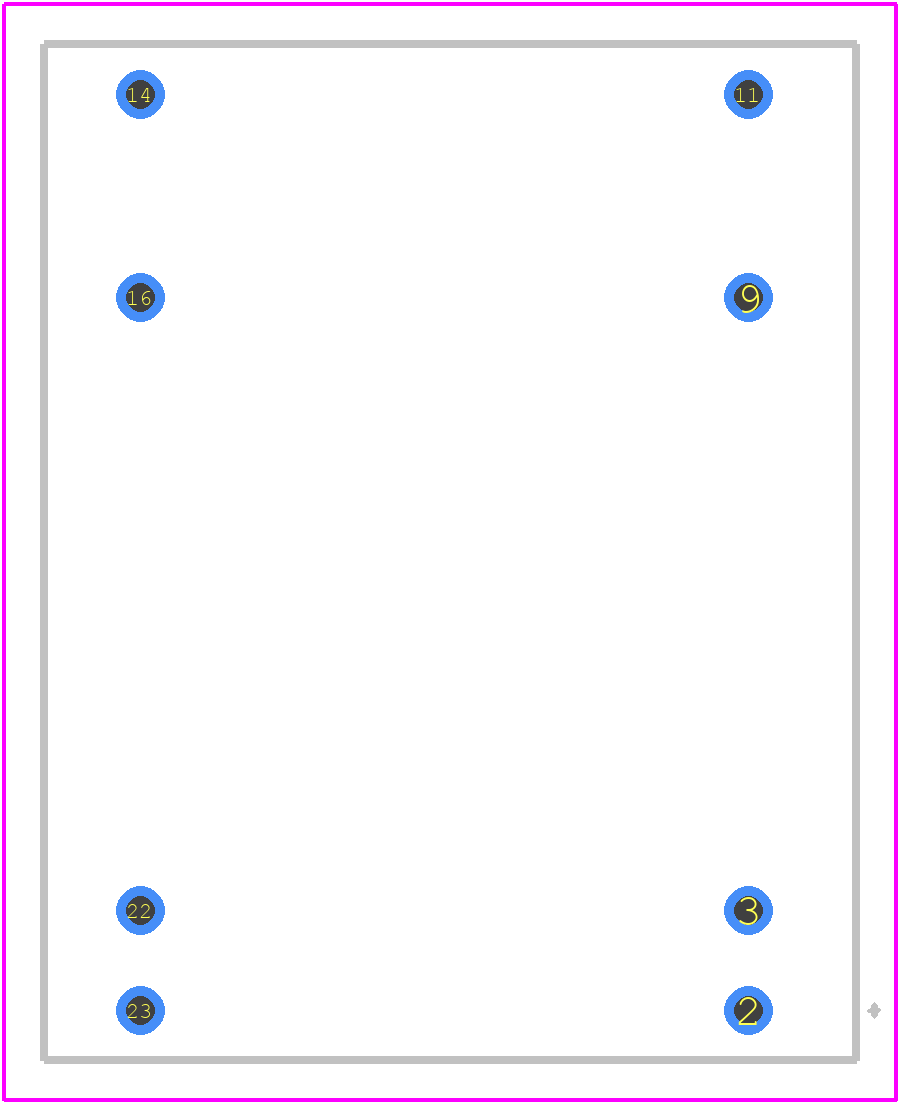

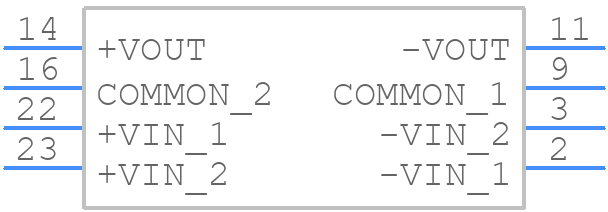

Use the download button to access the JCA0412D02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCA04,
or try a keyword search, such as Power Supply Modules
