JCA0605D03 - XP POWER

Description: DC/DC Converter Isolated +/-15V 6W XP Power Through Hole 6W Isolated DC-DC Converter, Vin 4.5 → 9 V dc, I/O isolation 1500V dc, Vout ±15V dc

Download JCA0605D03 Model

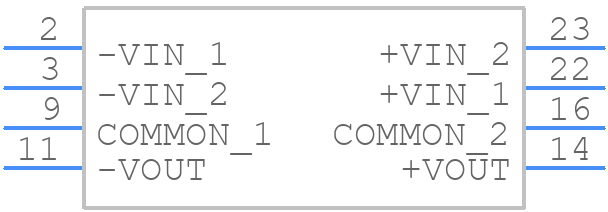

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

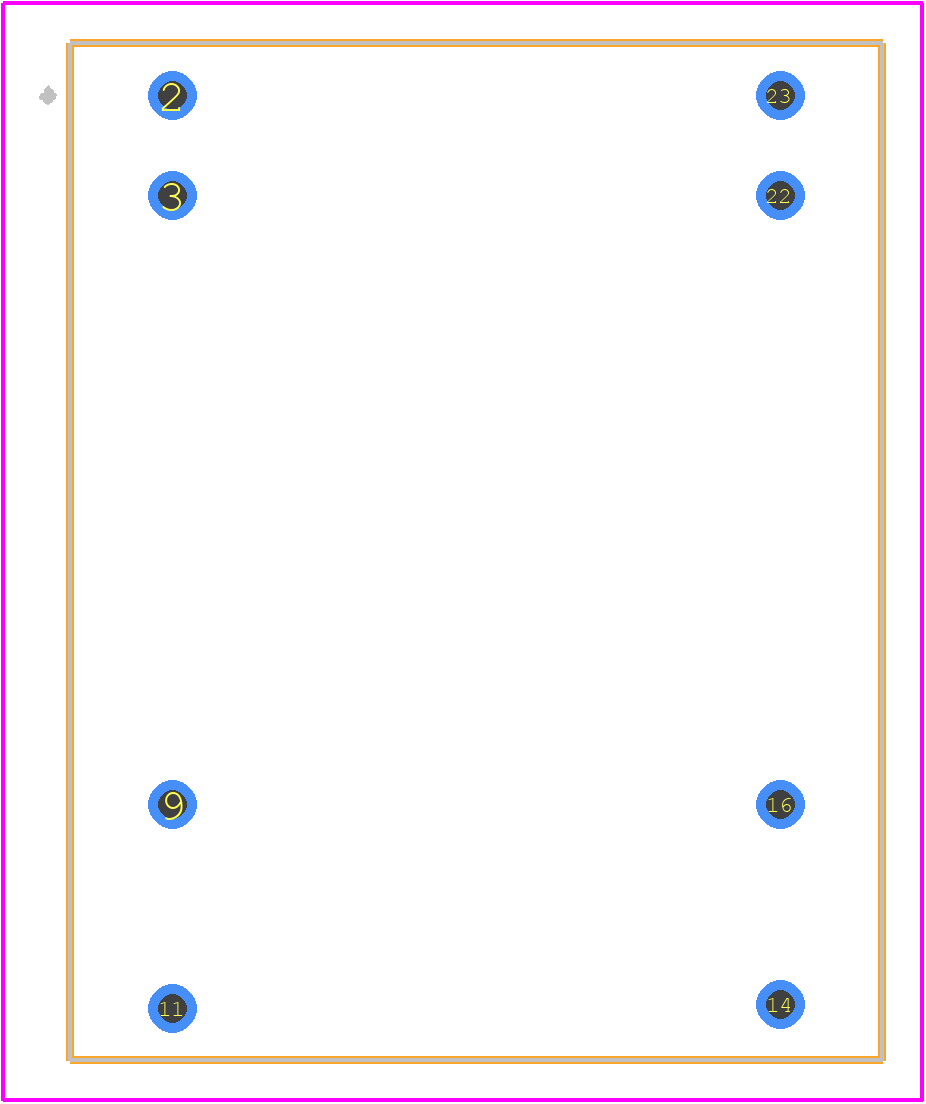

PCB Footprints
JCA0605D03 - XP POWER PCB footprint - Other - Other - JCA04/06
click to zoom
3D Models
JCA0605D03 - XP POWER  - 3D model - Other - JCA04/06
click to zoom

JCA0605D03 Details

  • Manufacturer Part Number:

    JCA0605D03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Additional Feature:

    ALSO HAVE -15V OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8/20,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

JCA0605D03 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat efficiently. A minimum of 1 square inch of copper is recommended.
  • XP Power recommends using a soldering iron with a temperature of 250°C to 270°C and a solder with a melting point of 180°C to 200°C. The device should be soldered within 3 seconds to prevent thermal damage.
  • The maximum capacitance value for the output capacitor is 220uF. Exceeding this value may cause instability in the device.
  • Yes, the JCA0605D03 is designed to operate in humid environments. However, it's recommended to follow the recommended storage and handling procedures to prevent moisture-related issues.
  • The recommended input voltage range for the JCA0605D03 is 3.3V to 5.5V. Operating the device outside this range may affect its performance and reliability.
