Please enter a minimum 3 letters or numbers
Technical Content
Part Image

JCA0624S03 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 3.3V 1.52A 18V - 36V Input

Download JCA0624S03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

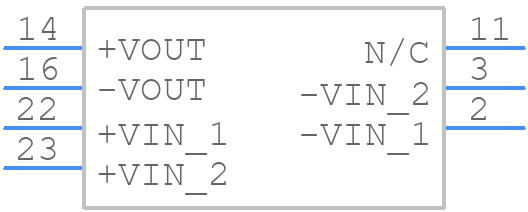

JCA0624S03 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCA0624S03 - XP POWER PCB footprint - Other - Other - JCA0624S03
click to zoom
3D Models
JCA0624S03 - XP POWER - 3D model - Other - JCA0624S03
click to zoom

JCA0624S03 Details

  • Manufacturer Part Number:

    JCA0624S03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    TUV, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P7

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.52 A

  • Output Voltage-Max:

    3.333 V

  • Output Voltage-Min:

    3.267 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8/23LEAD,0.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.0176 Vrms

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5.016 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.2 s

  • Width:

    20.3 mm

JCA0624S03 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The JCA0624S03 has built-in input voltage transient protection, which can withstand voltage spikes up to 300V for 100ms. However, it's recommended to add external input voltage transient protection devices for harsher environments.
  • The maximum cable length for the output cables is 10 inches (25cm). XP Power recommends using cables with a minimum of 18 AWG and a maximum of 20 AWG, with a twisted pair configuration to minimize EMI.
  • Yes, the JCA0624S03 can be used in a redundant configuration. XP Power recommends using a diode ORing configuration with a current sharing circuit to ensure seamless redundancy and minimize downtime.
  • The MTBF of the JCA0624S03 is approximately 1.5 million hours, calculated according to the Telcordia SR-332 Issue 3 standard. This calculation takes into account the component failure rates, operating conditions, and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCA0624S03 Overview

Use the download button to access the JCA0624S03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCA06, or try a keyword search, such as Power Supply Modules

Parts related to JCA0624S03

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
