JCA1005S05 - XP POWER

Description: XP Power Through Hole 10W DC-DC Converter, 4.5 → 9 V dc Input, 5V dc Output

Download JCA1005S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

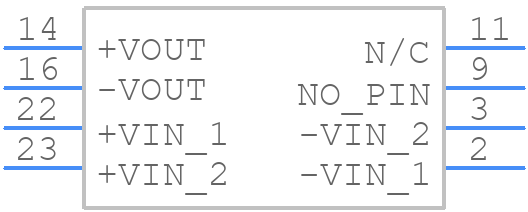

JCA1005S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCA1005S05 - XP POWER PCB footprint - Other - Other - JCA1005S05-1
click to zoom
3D Models
JCA1005S05 - XP POWER - 3D model - Other - JCA1005S05-1
click to zoom

JCA1005S05 Details

  • Manufacturer Part Number:

    JCA1005S05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    8 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

JCA1005S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and filtering guidelines in the datasheet, using a metal enclosure, and adding additional filtering components if necessary, such as common-mode chokes and X-capacitors.
  • The maximum allowable capacitance on the output is 2200uF, exceeding which may cause instability or oscillation in the converter.
  • Yes, the JCA1005S05 is designed to withstand high-vibration environments, but it's recommended to follow XP Power's guidelines for vibration testing and to ensure the converter is properly secured to the PCB and enclosure.
  • XP Power provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues, such as checking input voltage, output voltage, and fault signals.
