JCB0305D09 - XP POWER

Description: XP Power JCB 3W Isolated DC-DC Converter Through Hole, Vin 4.5 → 9 V dc, Vout ±9V dc, I/O isolation 1.5kV dc

Download JCB0305D09 Model

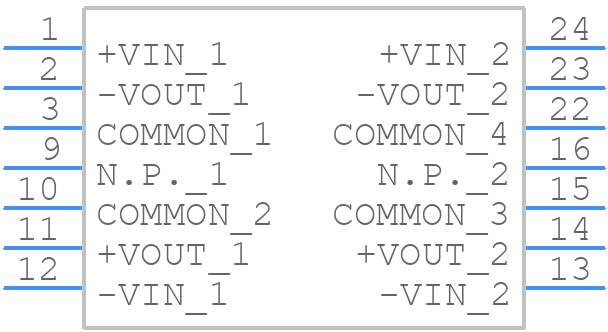

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

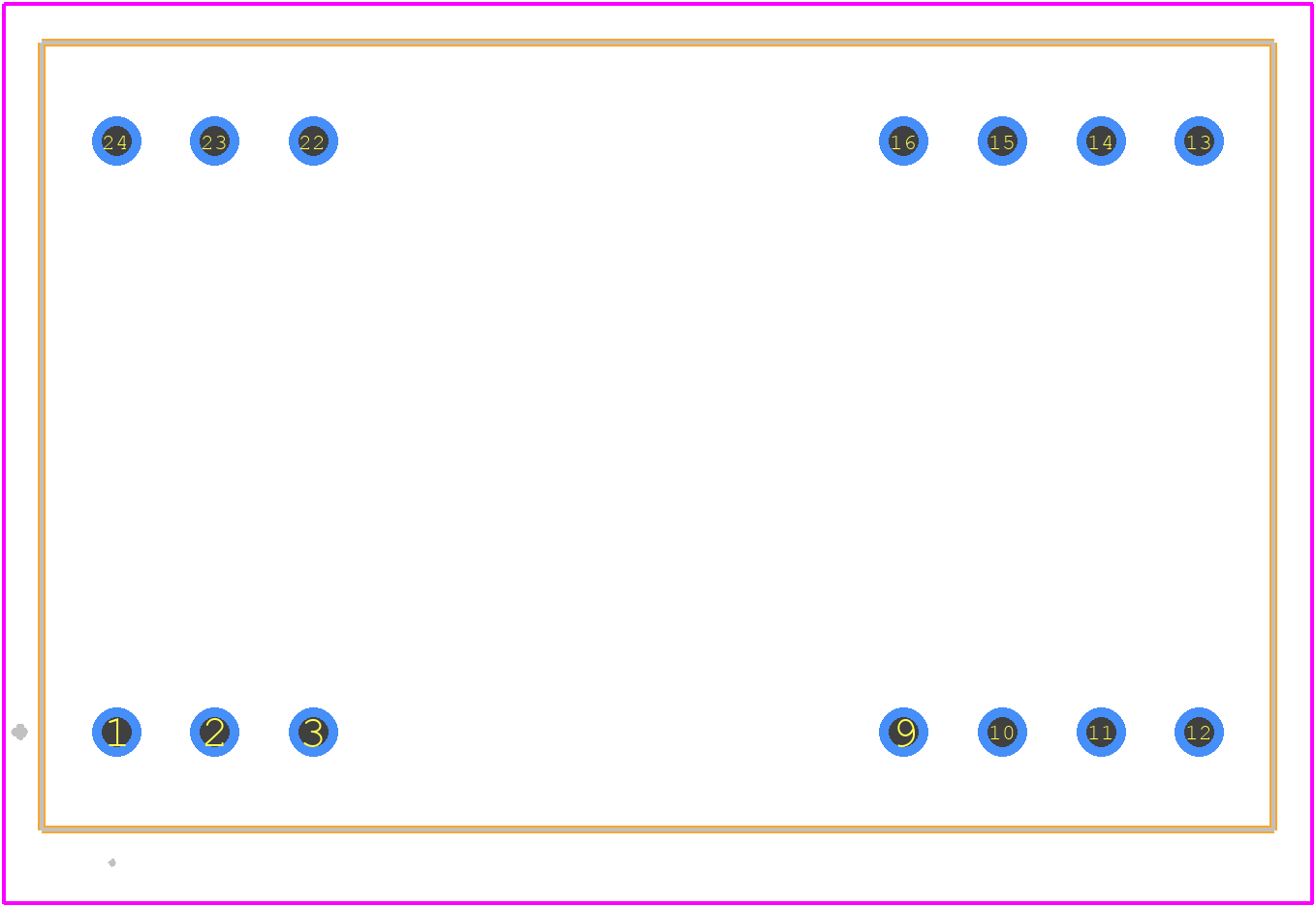

JCB0305D09 - XP POWER PCB footprint - Other - Other - JCB0305D09
click to zoom
3D Models
JCB0305D09 - XP POWER  - 3D model - Other - JCB0305D09
click to zoom

JCB0305D09 Details

  • Manufacturer Part Number:

    JCB0305D09

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-14

  • Pin Count:

    24/14

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Additional Feature:

    ADDITIONAL -9 VOLT OUTPUT VOLTAGE ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-P14

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    9.09 V

  • Output Voltage-Min:

    8.91 V

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCB0305D09 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • The derating curve for the JCB0305D09 is available in the datasheet, and it shows the reduction in output power as a function of ambient temperature. Engineers should consult the curve to determine the maximum output power at their specific operating temperature.
  • The JCB0305D09 is designed to meet the vibration and shock requirements of IEC 60068-2-6 and IEC 60068-2-27, respectively. However, engineers should consult the datasheet and XP Power's application notes for specific guidance on using the module in high-vibration or high-shock environments.
  • XP Power provides application notes and troubleshooting guides on their website, which cover common issues and their solutions. Engineers can also contact XP Power's technical support team for assistance with troubleshooting and fault diagnosis.
