JCD0412D15 - XP POWER

Description: XP Power Through Hole 4W Isolated DC-DC Converter, Vin 9 → 18 V dc, I/O isolation 1.6kV dc, Vout ±15V dc

Download JCD0412D15 Model

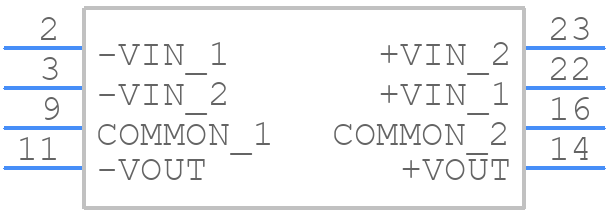

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JCD0412D15 - XP POWER PCB footprint - Other - Other - JCD0424D09-2
click to zoom
3D Models
JCD0412D15 - XP POWER  - 3D model - Other - JCD0424D09-2
click to zoom

JCD0412D15 Details

  • Manufacturer Part Number:

    JCD0412D15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -15V OUTPUT VOLTAGE ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.3 V

  • Output Voltage-Min:

    14.7 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    4 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCD0412D15 Overview

Use the download button to access the JCD0412D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCD04, or try a keyword search, such as Power Supply Modules
