JCD0412S12 - XP POWER

Description: XP Power Through Hole 4W Isolated DC-DC Converter, Vin 9 → 18 V dc, I/O isolation 1.6kV dc, Vout 12V dc

Download JCD0412S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

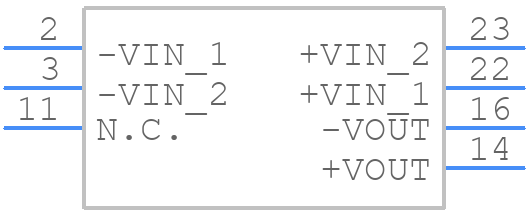

Symbol
JCD0412S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCD0412S12 - XP POWER PCB footprint - Other - Other - 24 pin DIL(H=10.9mm)
click to zoom
3D Models
JCD0412S12 - XP POWER - 3D model - Other - 24 pin DIL(H=10.9mm)
click to zoom

JCD0412S12 Details

  • Manufacturer Part Number:

    JCD0412S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    4 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCD0412S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding. Additionally, the power supply should be installed in a system with a suitable EMC design.
  • According to XP Power, the MTBF of the JCD0412S12 is approximately 550,000 hours at 25°C, calculated using the MIL-HDBK-217F method.
  • Yes, the JCD0412S12 is designed to withstand vibrations up to 10G peak acceleration, 10-2000Hz frequency range, and 1 octave/minute sweep rate, making it suitable for use in high-vibration environments.
  • XP Power recommends keeping the input and output cable lengths as short as possible, but the maximum recommended length is 1 meter for the input and 0.5 meters for the output.
