JCD0424S24 footprint, schematic symbol and 3D model by XP POWER

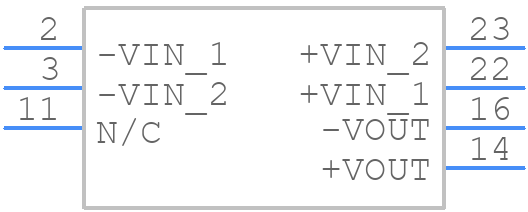

Symbol

click to zoom

PCB Footprints

JCD0424S24 - XP POWER PCB footprint - Other - Other - DIP24_2026-2.2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JCD0424S24
Part Number JCD0424S24
Manufacturer XP POWER
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - DIP24_2026-2.2
Released Date Jun 2, 2026
Last Modified Date Jun 3, 2026 10:10 AM UTC
Pinout / Pin List Click Here (Member Only)

JCD0424S24 Details

Manufacturer Part Number:
JCD0424S24
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
24/8
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P8
Length:
31.75 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
24.48 V
Output Voltage-Min:
23.52 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
4 W
Trim/Adjustable Output:
NO
Width:
20.32 mm

JCD0424S24 Frequently Asked Questions (FAQs)

The maximum capacitance load for the JCD0424S24 is 0.1uF to 10uF. Exceeding this range may affect the converter's stability and performance.
The JCD0424S24 is rated for operation up to 80°C ambient temperature. However, derating may be necessary for temperatures above 60°C. Consult the manufacturer's application notes for guidance on high-temperature operation.
The recommended input fuse rating for the JCD0424S24 is 2A to 5A, depending on the input voltage and system requirements. Consult the manufacturer's application notes for specific guidance.
Yes, multiple JCD0424S24 modules can be paralleled to increase output power. However, it's essential to ensure that the modules are identical, and the output voltage and current are properly synchronized to avoid instability and damage.
The typical efficiency of the JCD0424S24 is around 85% to 90%, depending on the input voltage, output load, and operating temperature. Consult the manufacturer's datasheet and application notes for more detailed information.

Trust Checks

Community Provided

System Verified

Community Approved

JCD0424S24 Overview

Use the download button to access the JCD0424S24 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like JCD04, or try a keyword search, such as Power Supply Modules
