XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the JCD0424S3V3 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability, XP Power recommends derating the module's output power by 2.5% per degree Celsius above 40°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce thermal resistance.
XP Power recommends using a fuse with a rating of 2A to 5A, depending on the input voltage and system requirements. The fuse should be able to handle the module's peak inrush current and provide protection against input overvoltage and overcurrent conditions.
Yes, the JCD0424S3V3 can be used in redundant or parallel configurations to achieve higher power output or redundancy. However, it's essential to ensure proper synchronization and ORing of the outputs to prevent damage or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCD0424S3V3 Overview

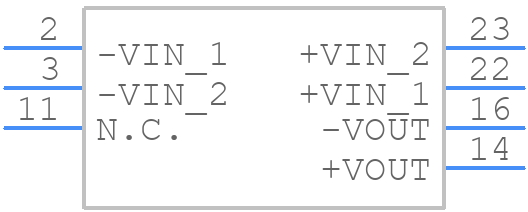

Use the download button to access the JCD0424S3V3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCD04,
or try a keyword search, such as Power Supply Modules
