JCD0512S05 - XP POWER

Description: XP Power Through Hole 5W Isolated DC-DC Converter, Vin 9 → 18 V dc, I/O isolation 1.6kV dc, Vout 5V dc

Download JCD0512S05 Model

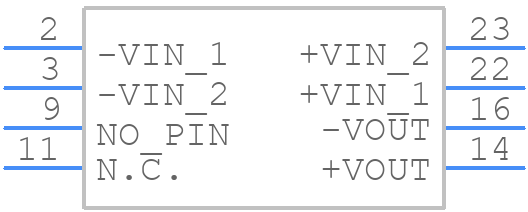

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JCD0512S05 - XP POWER PCB footprint - Other - Other - JCD0512S05-2
click to zoom
3D Models
JCD0512S05 - XP POWER  - 3D model - Other - JCD0512S05-2
click to zoom

JCD0512S05 Details

  • Manufacturer Part Number:

    JCD0512S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCD0512S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
  • The derating curve for the JCD0512S05 is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 2.5% per °C above 50°C to ensure reliable operation.
  • Yes, the JCD0512S05 can be used in a redundant or parallel configuration, but XP Power recommends consulting their application notes and technical support team to ensure proper implementation and to discuss any specific requirements.
  • The MTBF for the JCD0512S05 is not explicitly stated in the datasheet, but XP Power provides a calculation method in their reliability handbook, which can be requested from their technical support team.
