JCD0524D05 footprint, schematic symbol and 3D model by XP POWER

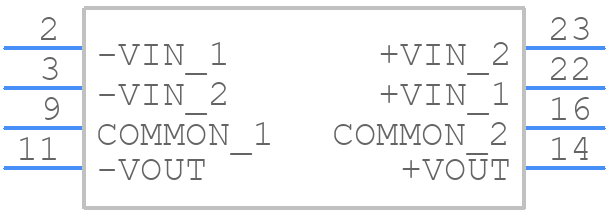

Symbol

click to zoom

PCB Footprints

JCD0524D05 - XP POWER PCB footprint - Other - Other - JCD0524D05-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JCD0524D05
Part Number JCD0524D05
Manufacturer XP POWER
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - JCD0524D05-2
Released Date Jul 5, 2026
Last Modified Date Jul 5, 2026 3:56 AM UTC
Pinout / Pin List Click Here (Member Only)

JCD0524D05 Details

Manufacturer Part Number:
JCD0524D05
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
24/8
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Additional Feature:
ADDITIONAL -5V OUTPUT VOLTAGE ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P8
Length:
31.75 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.05 V
Output Voltage-Min:
4.95 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
5 W
Trim/Adjustable Output:
NO
Width:
20.32 mm

JCD0524D05 Frequently Asked Questions (FAQs)

The maximum capacitance load for the JCD0524D05 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
While the JCD0524D05 has a rated operating temperature range of -40°C to 85°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
To ensure EMC, it's recommended to follow proper PCB layout and design guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Additionally, the JCD0524D05 has built-in EMI filters, but external filtering may still be required depending on the application.
The recommended input fuse rating for the JCD0524D05 is 1A to 2A, depending on the input voltage and current requirements of the application.
Yes, you can parallel multiple JCD0524D05 modules to increase the output power, but it's essential to ensure that the modules are identical, and the output voltages are matched to within 1% to prevent uneven current sharing.
