JCD0524S24 - XP POWER

Description: XP Power Through Hole 5W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 1.6kV dc, Vout 24V dc

Download JCD0524S24 Model

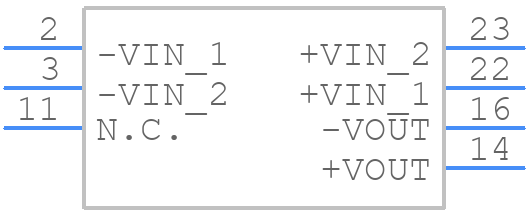

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JCD0524S24 - XP POWER PCB footprint - Other - Other - JCD0524S24-2
click to zoom
3D Models
JCD0524S24 - XP POWER  - 3D model - Other - JCD0524S24-2
click to zoom

JCD0524S24 Details

  • Manufacturer Part Number:

    JCD0524S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.24 V

  • Output Voltage-Min:

    23.76 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCD0524S24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCD0524S24 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • While the JCD0524S24 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • To ensure EMC, use a metal enclosure, keep the input and output cables separate, and add a common-mode choke or ferrite bead to the input lines. Additionally, follow good PCB layout practices and use a shielded cable for the output.
  • The recommended input fuse rating for the JCD0524S24 is 2A slow-blow. This helps protect the device from input overvoltage and overcurrent conditions.
  • Yes, you can parallel multiple JCD0524S24 modules to increase the output power. However, ensure that the modules are identical, and the output voltages are matched within 1% to prevent current imbalance.
