JCD0624S15 footprint, schematic symbol and 3D model by XP POWER

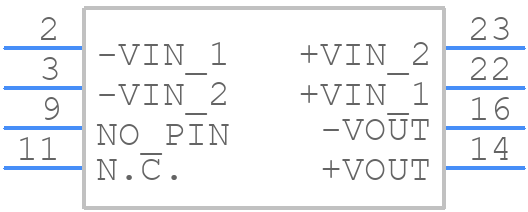

Symbol

click to zoom

PCB Footprints

JCD0624S15 - XP POWER PCB footprint - Other - Other - JCD

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JCD0624S15
Part Number JCD0624S15
Manufacturer XP POWER
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - JCD
Released Date Oct 18, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JCD0624S15 Details

Manufacturer Part Number:
JCD0624S15
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
24/8
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P8
Length:
31.75 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.15 V
Output Voltage-Min:
14.85 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
6 W
Trim/Adjustable Output:
NO
Width:
20.32 mm

JCD0624S15 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The JCD0624S15 has built-in input voltage transient protection, but it's recommended to add external protection components such as TVS diodes or varistors to ensure reliable operation in harsh environments.
The maximum recommended cable length for the output voltage sense lines is 10 inches (25 cm) to minimize voltage drop and ensure accurate voltage regulation.
Yes, the JCD0624S15 can be used in a redundant or N+1 configuration, but it requires additional external circuitry and control logic to ensure seamless switchover and fault detection.
The MTBF of the JCD0624S15 is typically in the range of 1-2 million hours, depending on the operating conditions and environment.
