JCG1212S05 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC DC CONVERTER, 12WATT, 2:1 INPUT

Download JCG1212S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

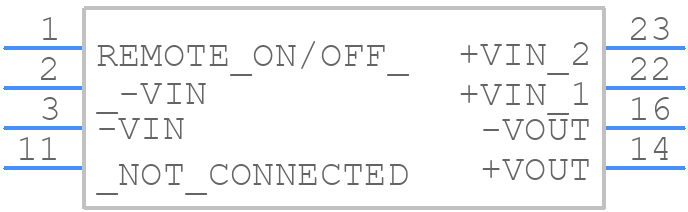

JCG1212S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCG1212S05 - XP POWER PCB footprint - Other - Other - 24-DIP Module, 8 Leads
click to zoom
3D Models
JCG1212S05 - XP POWER - 3D model - Other - 24-DIP Module, 8 Leads
click to zoom

JCG1212S05 Details

  • Manufacturer Part Number:

    JCG1212S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HGT-NOM;

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.16 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCG1212S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • The derating curve for the JCG1212S05 at high altitudes is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 1% per 1,000 feet above sea level to ensure reliable operation.
  • Yes, the JCG1212S05 can be used in a redundant or parallel configuration, but XP Power recommends following their specific guidelines for synchronization and current sharing to ensure reliable operation and avoid damage to the power supplies.
  • The MTBF for the JCG1212S05 is not explicitly stated in the datasheet, but XP Power provides a calculation method based on the MIL-HDBK-217F standard, which can be used to estimate the MTBF.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCG1212S05 Overview

Use the download button to access the JCG1212S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCG12, or try a keyword search, such as Power Supply Modules
