XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JCH1012S12 is designed to withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range, and 1 hour duration per axis. However, it's recommended to consult XP Power's application notes for specific vibration testing and mounting recommendations.
The JCH1012S12 has an internal input filter that meets CISPR 22 Class B and FCC Part 15 Class B emissions standards. However, to ensure compliance with your system's specific EMI requirements, XP Power recommends adding external filtering components and consulting their application notes for guidance.
XP Power recommends keeping the output cable length as short as possible (less than 6 inches) to minimize voltage drops and ensure reliable operation. If longer cables are necessary, consult XP Power's application notes for guidance on cable sizing and voltage drop calculations.
The JCH1012S12 has a conformal coating that provides some protection against humidity and moisture. However, it's not designed for immersion or exposure to water. If your application requires operation in a humid or wet environment, consult XP Power's application notes for guidance on environmental protection and sealing recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCH1012S12 Overview

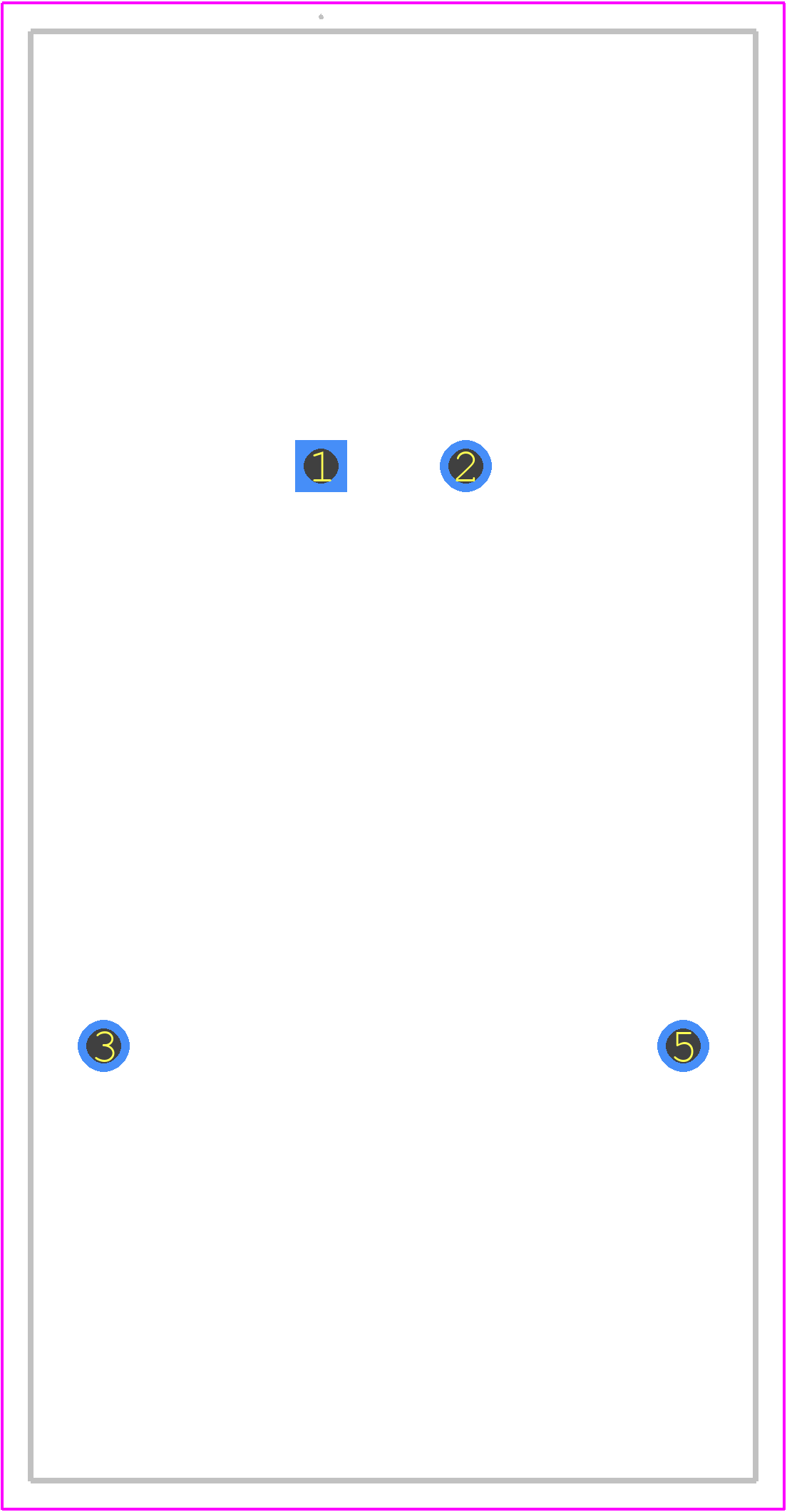

Use the download button to access the JCH1012S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCH10,
or try a keyword search, such as Power Supply Modules
