JCH1024D05 - XP POWER

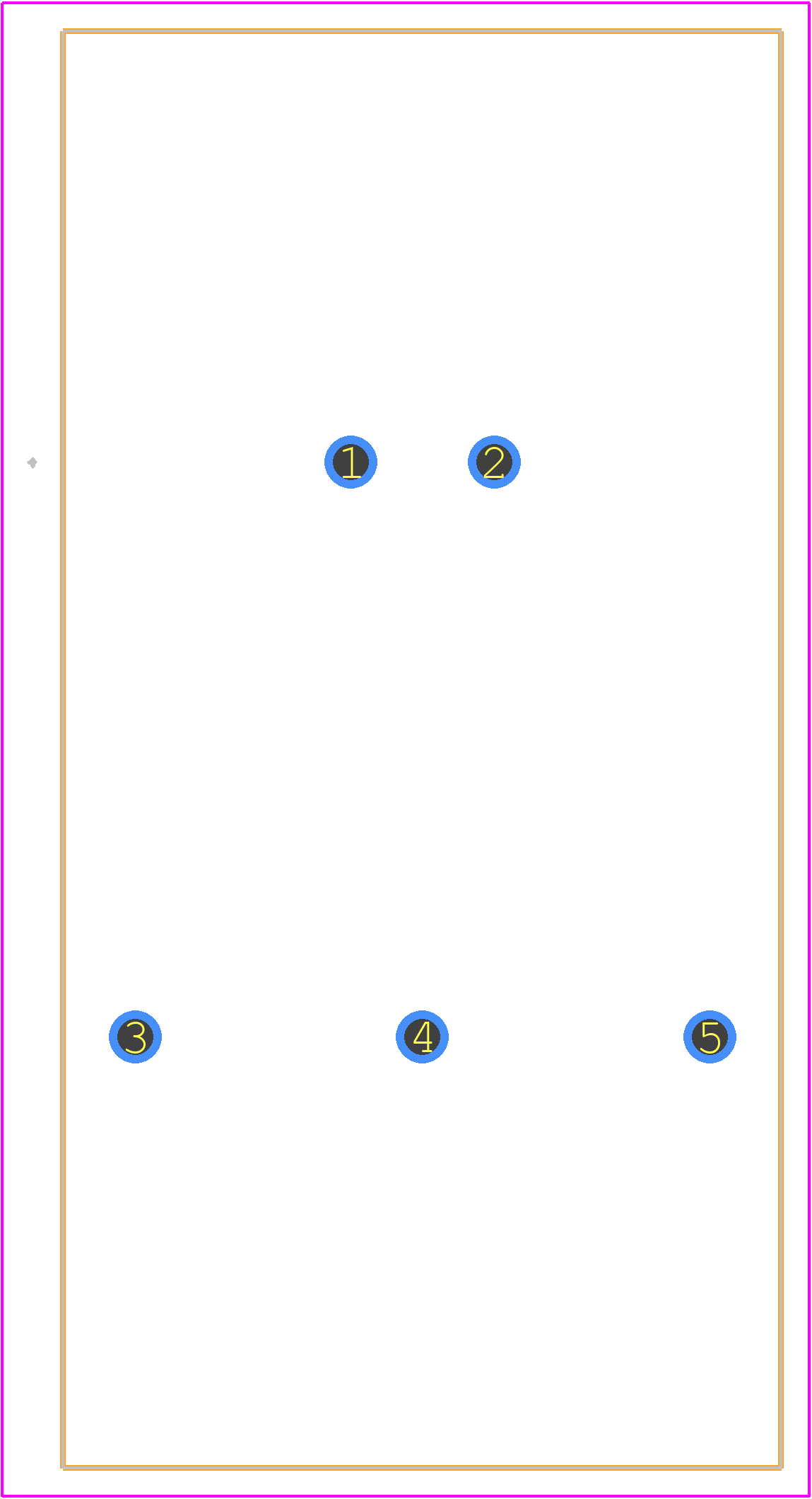

JCH1024D05 Details

• Manufacturer Part Number:

  JCH1024D05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  Module-5

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  6

• Additional Feature:

  -5 V ADDITIONAL OUTPUT ALSO AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P5

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  5

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  SHORT CIRCUIT;OVERLOAD

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Seated Height-Max:

  10.66 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  200 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.02 s

• Width:

  25.4 mm
