JCIQ-176M+ - Mini-Circuits

Description: I&Q Modulator 50Ω , 104MHz to 176MHz , 40mA , 50mW , -55°C to 100°C

Download JCIQ-176M+ Model

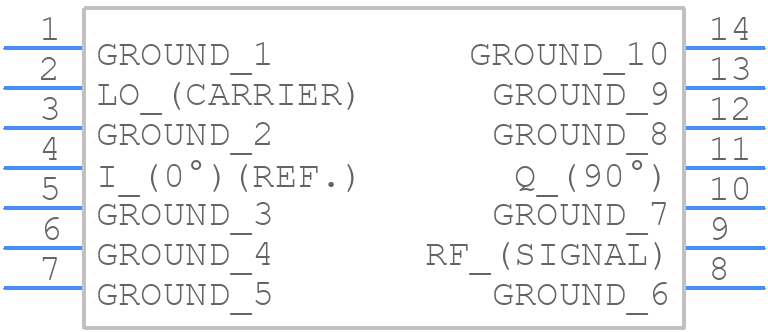

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

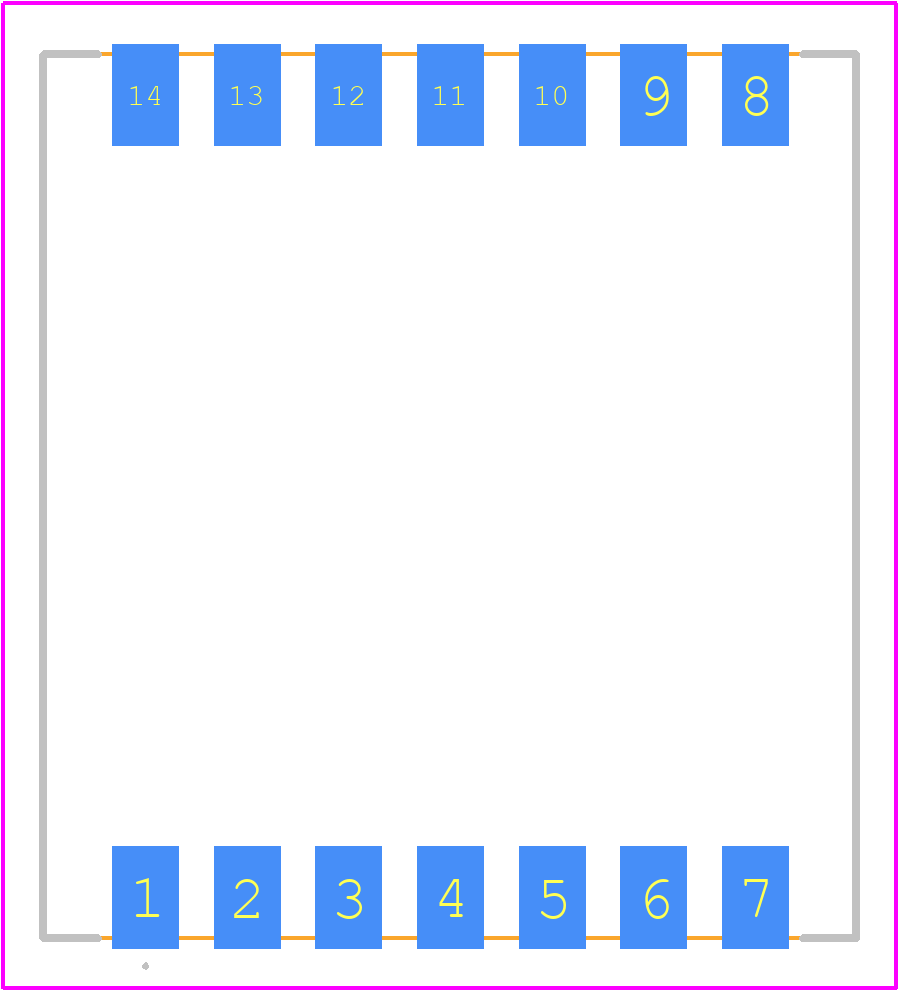

JCIQ-176M+ - Mini-Circuits PCB footprint - Other - Other - BG291_2025-3.2
click to zoom
3D Models
JCIQ-176M+ - Mini-Circuits  - 3D model - Other - BG291_2025-3.2
click to zoom

JCIQ-176M+ Details

  • Manufacturer Part Number:

    JCIQ-176M+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    7 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    I/Q

  • Operating Frequency-Max:

    176 MHz

  • Operating Frequency-Min:

    104 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier
