JCK1512D15 - XP POWER

Description: XP Power JCK 15W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout ±15V dc, I/O isolation 1.6kV dc

Download JCK1512D15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

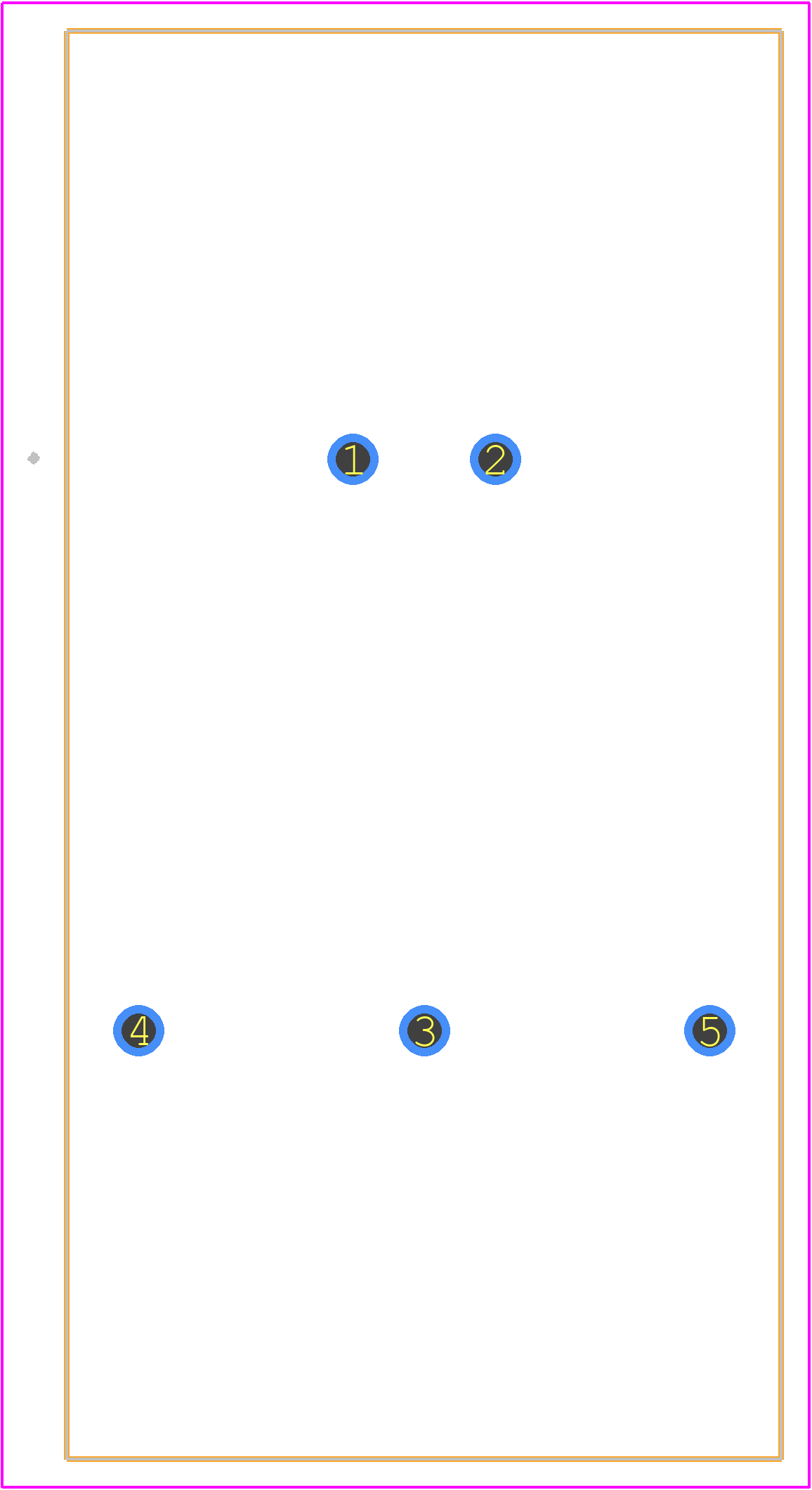

JCK1512D15 - XP POWER PCB footprint - Other - Other - JCK1512S12
click to zoom
3D Models
JCK1512D15 - XP POWER  - 3D model - Other - JCK1512S12
click to zoom

JCK1512D15 Details

  • Manufacturer Part Number:

    JCK1512D15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-10-22

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    -15V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, UKCA

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    SHORT CIRCUIT; OUTPUT OVER LOAD

  • Ripple Voltage (Main Out):

    0.0265125 Vrms

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.025 s

  • Width:

    25.4 mm

JCK1512D15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary.
  • The derating curve for the JCK1512D15 is typically provided in the datasheet or can be obtained from XP Power's application notes. It shows the maximum output power vs. temperature, and is typically around 50% at 80°C and 20% at 100°C.
  • The JCK1512D15 is designed to meet the vibration requirements of IEC 60068-2-6, but XP Power recommends consulting their application notes and performing additional testing to ensure reliability in high-vibration environments.
  • The MTBF of the JCK1512D15 is typically around 1.5 million hours, calculated according to MIL-HDBK-217F, but this may vary depending on the specific application and operating conditions.
