JCK1524S05 - XP POWER

Description: Isolated DC/DC Converters DC-DC, 15W SINGLE O/P, 2x1"

Download JCK1524S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

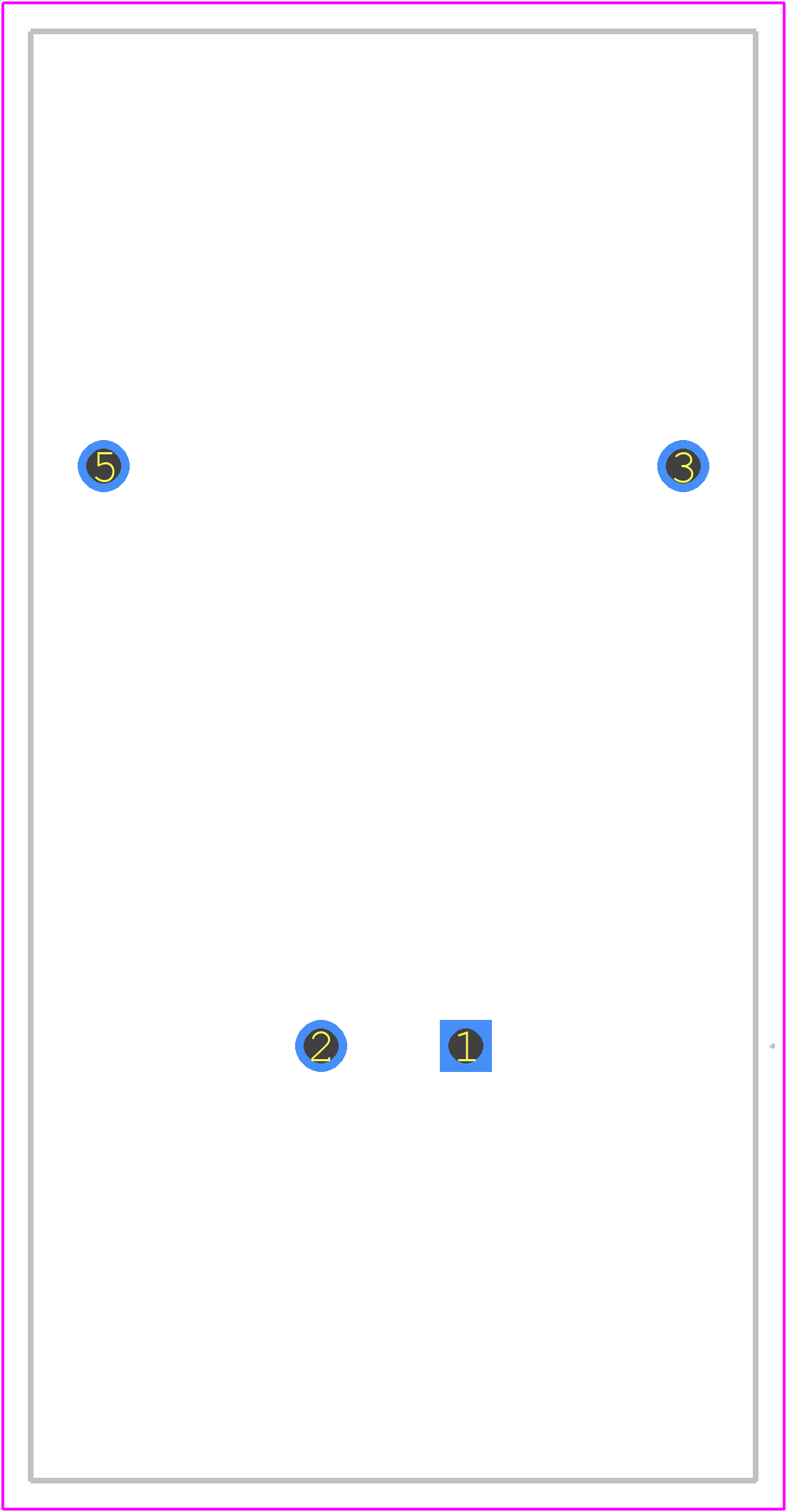

JCK1524S05 - XP POWER PCB footprint - Other - Other - JCK1524S05-1
click to zoom
3D Models
JCK1524S05 - XP POWER  - 3D model - Other - JCK1524S05-1
click to zoom

JCK1524S05 Details

  • Manufacturer Part Number:

    JCK1524S05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-10-22

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

JCK1524S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCK1524S05 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The JCK1524S05 is rated for operation up to 80°C ambient temperature. However, derating is required for temperatures above 60°C. Consult the datasheet for derating curves.
  • The JCK1524S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification documents and ensure compliance with your specific application requirements.
  • To minimize electromagnetic interference (EMI) and ensure optimal performance, follow the recommended layout and placement guidelines in the datasheet, including keeping the input and output capacitors close to the module and using a solid ground plane.
  • Yes, you can parallel multiple JCK1524S05 modules to achieve higher power. However, it's crucial to ensure proper synchronization and current sharing between the modules to avoid uneven current distribution and potential reliability issues.
