JCK4024S12 - XP POWER

Description: XP Power JCK 40W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout 12V dc, I/O isolation 1.6kV dc

Download JCK4024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

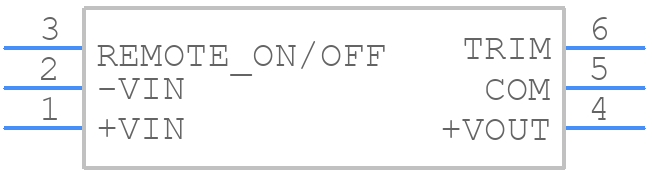

Symbol
JCK4024S12 - XP POWER - PCB symbol
click to zoom

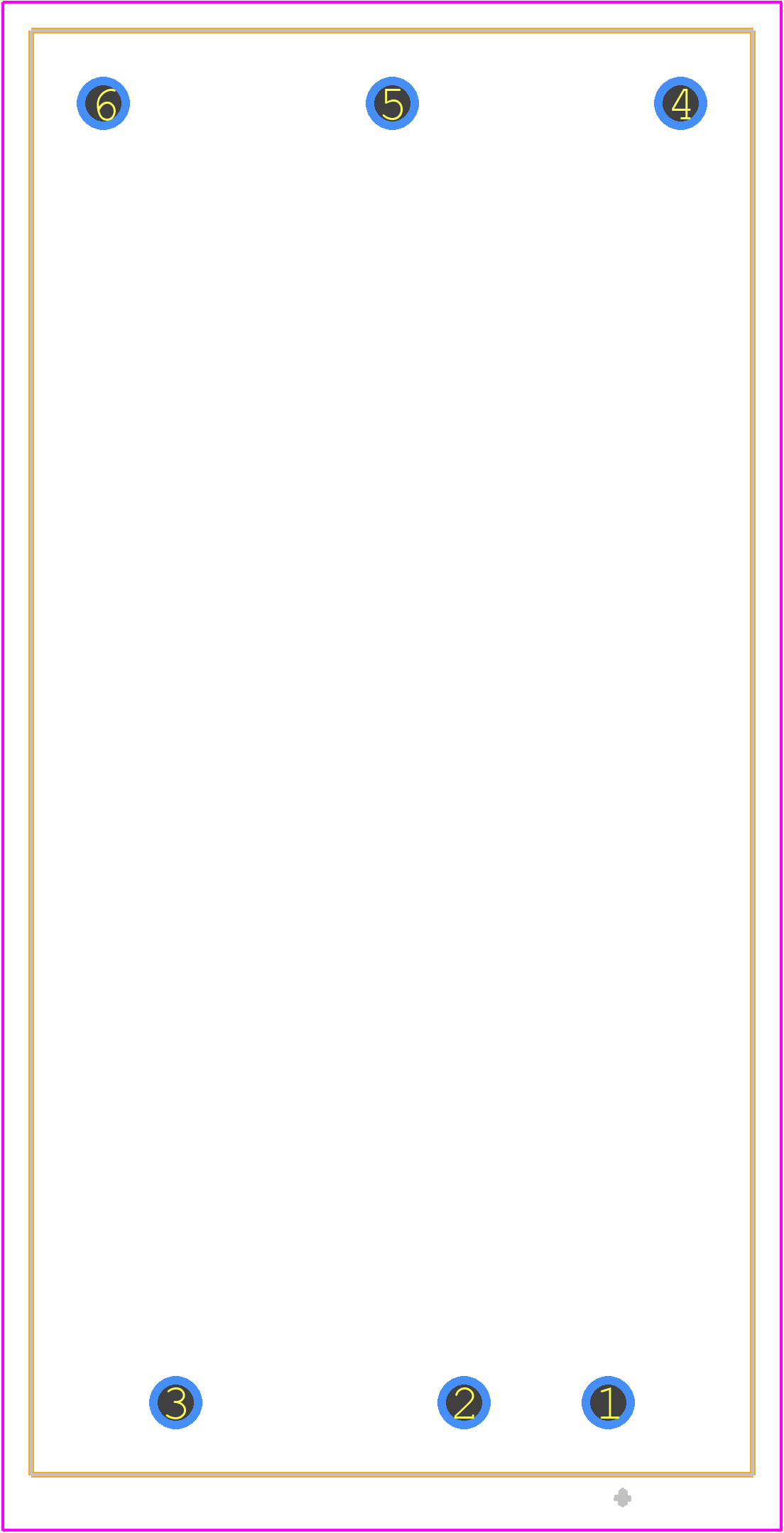

PCB Footprints
JCK4024S12 - XP POWER PCB footprint - Other - Other - 6-DIP Module
click to zoom
3D Models
JCK4024S12 - XP POWER - 3D model - Other - 6-DIP Module
click to zoom

JCK4024S12 Details

  • Manufacturer Part Number:

    JCK4024S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.16 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    39.96 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JCK4024S12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCK4024S12 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The JCK4024S12 is rated for operation up to 80°C ambient temperature. However, derating is required for temperatures above 60°C. Consult the datasheet for derating curves.
  • The JCK4024S12 meets various safety certifications, including UL, CE, and IEC. However, specific certifications may require additional testing or documentation. Consult with XP Power or a certified test house for customized certification.
  • To minimize electromagnetic interference (EMI) and ensure optimal performance, follow the recommended layout and placement guidelines in the datasheet, including keeping the input and output capacitors close to the module and using a solid ground plane.
  • Yes, multiple JCK4024S12 modules can be paralleled for higher power applications. However, ensure that the modules are synchronized and that the output currents are properly balanced to avoid uneven current sharing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCK4024S12 Overview

Use the download button to access the JCK4024S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCK40, or try a keyword search, such as Power Supply Modules
