JCK4024S15 - XP POWER

Description: XP Power Through Hole 40W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 1.6kV dc, Vout 15V dc

Download JCK4024S15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

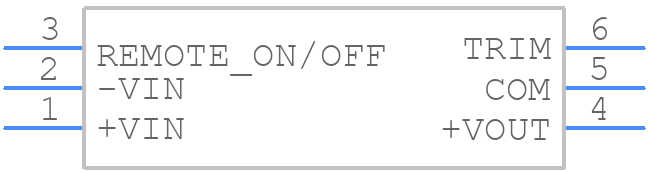

JCK4024S15 - XP POWER - PCB symbol
click to zoom
PCB Footprints

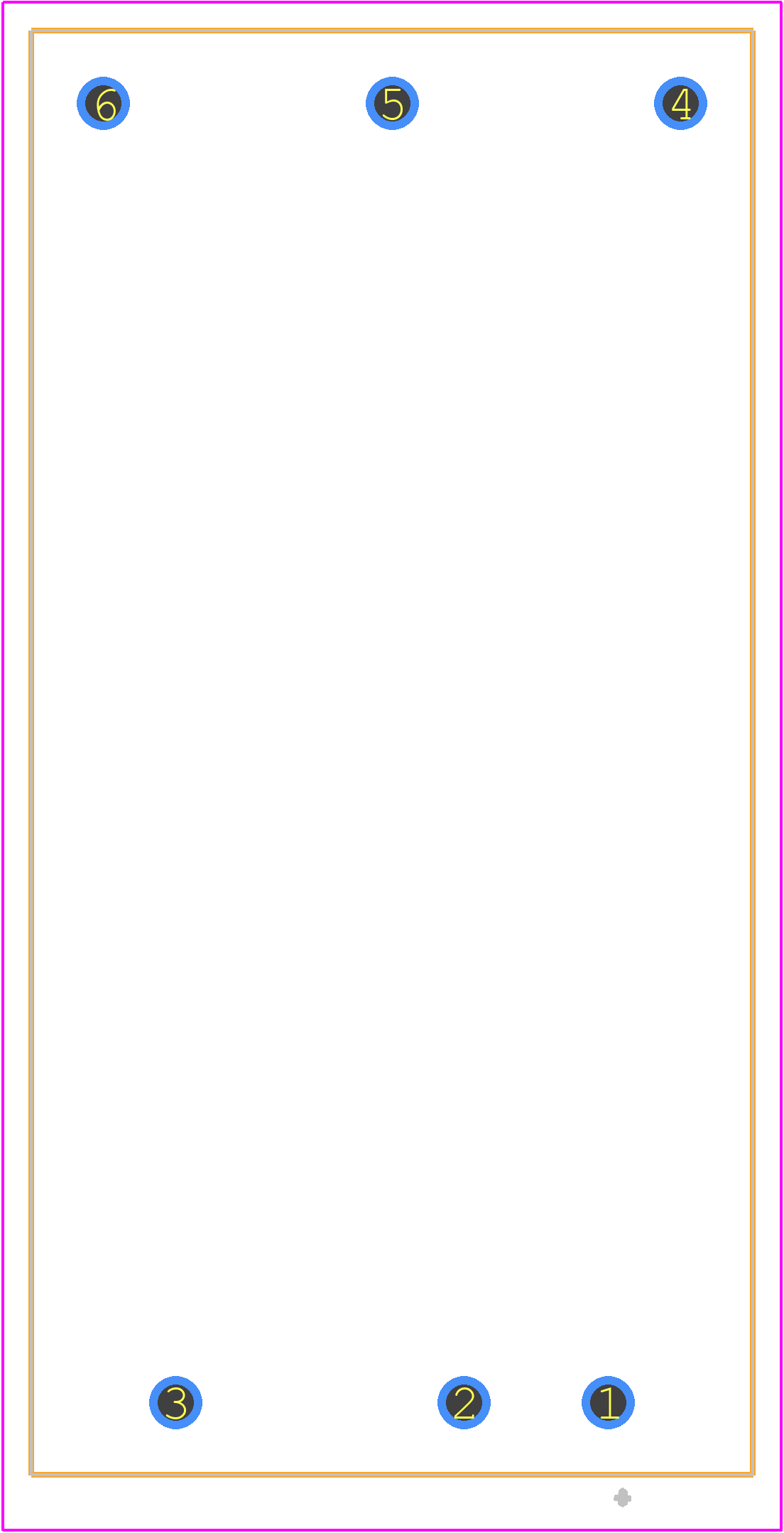

JCK4024S15 - XP POWER PCB footprint - Other - Other - 6-DIP Module
click to zoom
3D Models
JCK4024S15 - XP POWER - 3D model - Other - 6-DIP Module
click to zoom

JCK4024S15 Details

  • Manufacturer Part Number:

    JCK4024S15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.16 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JCK4024S15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • The derating curve for the JCK4024S15 is not explicitly stated in the datasheet, but XP Power recommends consulting their application notes or contacting their technical support for specific guidance on derating at high altitudes or high temperatures.
  • Yes, the JCK4024S15 can be used in a redundant or parallel configuration, but XP Power recommends consulting their application notes or technical support for specific guidance on synchronization, current sharing, and fault tolerance.
  • The MTBF and FIT rates for the JCK4024S15 are not explicitly stated in the datasheet, but XP Power provides reliability data and calculations based on MIL-HDBK-217F and Telcordia SR-332 standards upon request.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCK4024S15 Overview

Use the download button to access the JCK4024S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCK40, or try a keyword search, such as Power Supply Modules
