JCM1512S05 - XP POWER

Description: XP Power Through Hole 15W Isolated DC-DC Converter, Vin 9 → 18 V dc, I/O isolation 1.6kV dc, Vout 5V dc

Download JCM1512S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

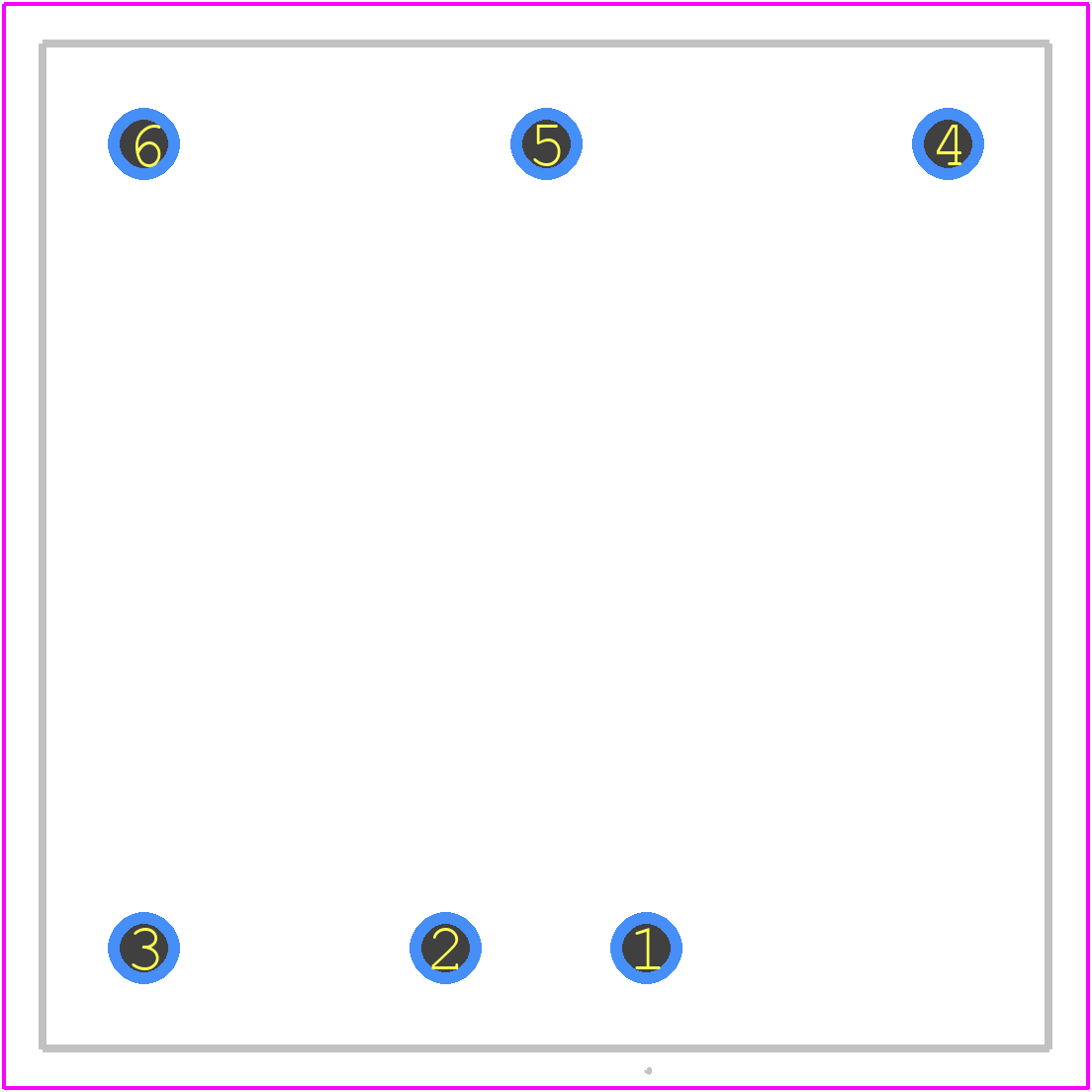

JCM1512S05 - XP POWER PCB footprint - Other - Other - JCM1512S05-1
click to zoom
3D Models
JCM1512S05 - XP POWER  - 3D model - Other - JCM1512S05-1
click to zoom

JCM1512S05 Details

  • Manufacturer Part Number:

    JCM1512S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JCM1512S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
  • The maximum allowable capacitance on the output is 220uF. Exceeding this value may affect the stability of the converter.
  • Yes, the JCM1512S05 can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized to prevent oscillations. XP Power recommends using a synchronization signal to ensure proper operation.
  • XP Power recommends a fuse rating of 5A slow-blow or 3A fast-acting to protect the converter from input overcurrent conditions.
