JCM2012S05 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC, 20W, SINGLE OUTPUT 2:1, 1"X1"

Download JCM2012S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JCM2012S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints

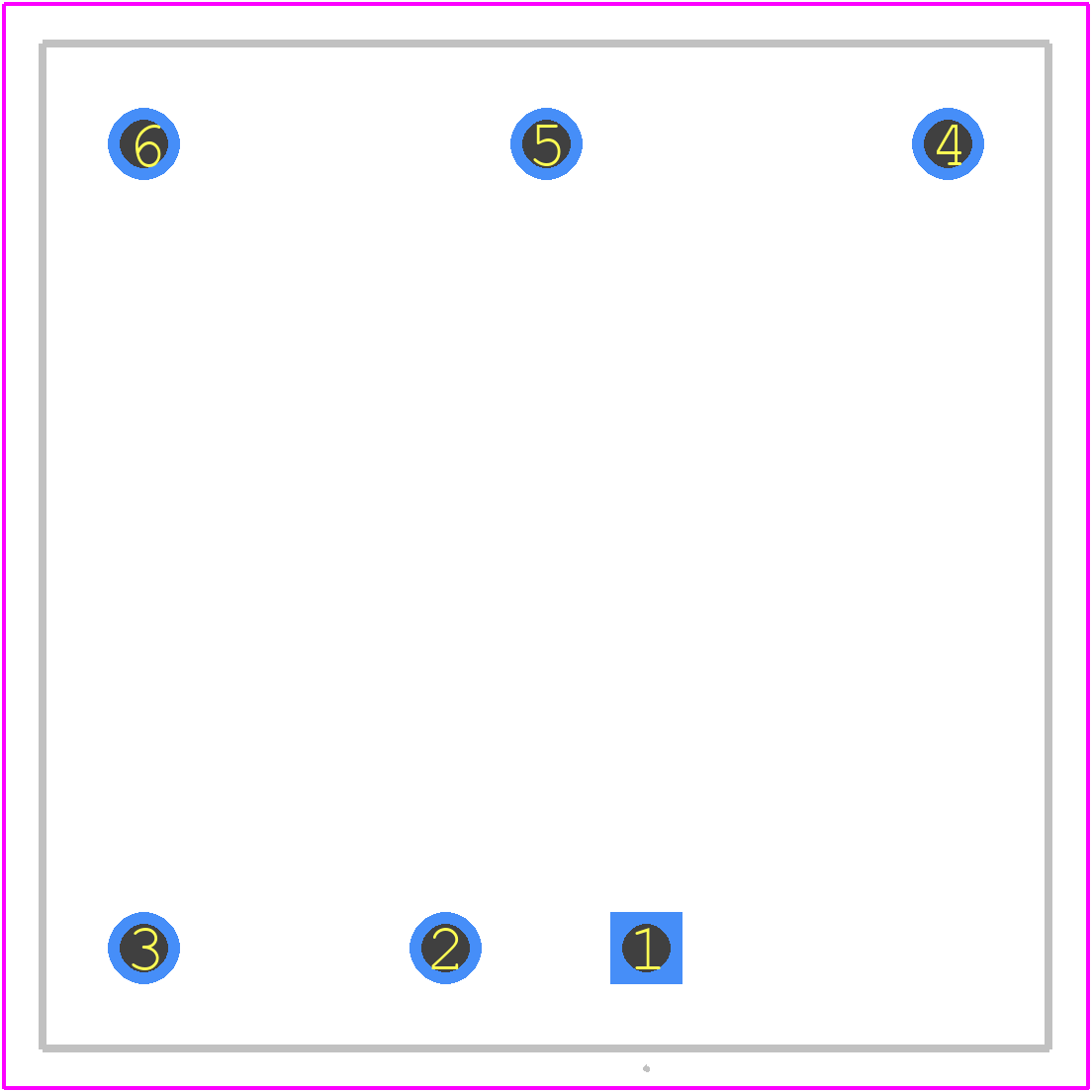

JCM2012S05 - XP POWER PCB footprint - Other - Other - 6-DIP_2025-1.5
click to zoom
3D Models
JCM2012S05 - XP POWER - 3D model - Other - 6-DIP_2025-1.5
click to zoom

JCM2012S05 Details

  • Manufacturer Part Number:

    JCM2012S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JCM2012S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • The maximum allowable capacitance for the output filter is 10uF, as specified in the datasheet. Exceeding this value may affect the stability of the output voltage.
  • Yes, the JCM2012S05 is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow the guidelines in the datasheet for mounting and securing the module to ensure reliable operation.
  • XP Power recommends following the troubleshooting guide in the datasheet, which includes checking the input voltage, output voltage, and fault signals to identify the root cause of the issue.
