JCM3012S12 footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

PCB Footprints

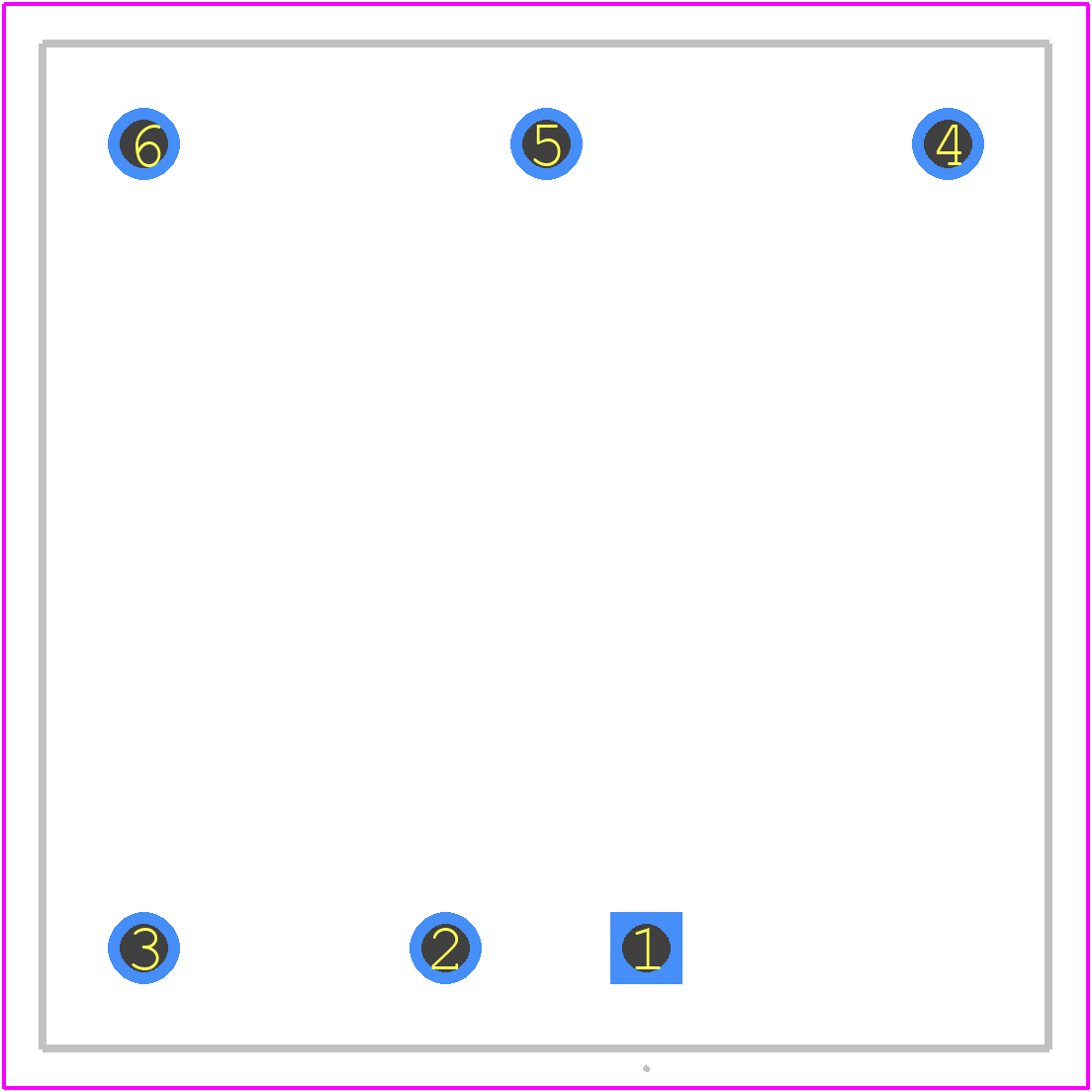

JCM3012S12 - XP POWER PCB footprint - Other - Other - JCM3012S12-1

click to zoom

3D Models

JCM3012S12 - XP POWER - 3D model - Other - JCM3012S12-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JCM3012S12
Part Number JCM3012S12
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - JCM3012S12-1
Released Date May 25, 2024
Last Modified Date Jun 25, 2024 8:05 AM UTC
Pinout / Pin List Click Here (Member Only)

JCM3012S12 Details

Manufacturer Part Number:
JCM3012S12
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL
Efficiency (Main Output):
89%
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.5 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER LOAD; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0265125 Vrms
Screening Level:
UL 62328-1
Seated Height-Max:
11.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

JCM3012S12 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
The JCM3012S12 has an input voltage range of 36-75 VDC. To ensure the input voltage is within this range, use a voltage regulator or a DC-DC converter with a suitable output voltage range. Additionally, consider using input voltage protection devices such as TVS diodes or voltage clamps to prevent overvoltage conditions.
The maximum output capacitance for the JCM3012S12 is 2200 uF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to use a capacitor with a low ESR (Equivalent Series Resistance) to minimize output voltage ripple.
The JCM3012S12 has an enable pin (EN) that can be used for remote on/off control. Connect the EN pin to a logic-level signal (TTL or CMOS) to turn the module on or off. Ensure the signal is within the specified voltage range (0-5 V) and has a suitable current sinking capability.
The typical efficiency of the JCM3012S12 is around 92-95% at full load (12 V, 12.5 A). Efficiency may vary with load, with a minimum efficiency of around 85% at 25% load. Refer to the datasheet's efficiency vs. load curve for more information.

Trust Checks

Community Provided

System Verified

Community Approved

JCM3012S12 Overview

Use the download button to access the JCM3012S12 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like JCM30, or try a keyword search, such as Power Supply Modules
