JDC-10-2+ - Mini-Circuits

Description: 10 dB SMT Directional Coupler, 5 - 750 MHz, 50Ω CASE STYLE: BH292

Download JDC-10-2+ Model

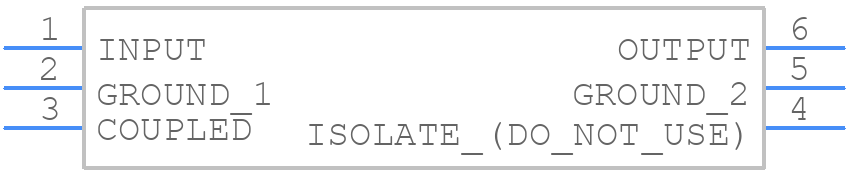

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

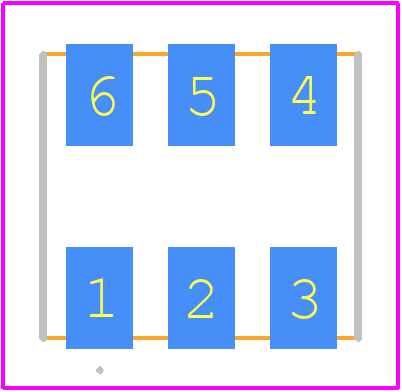

PCB Footprints
JDC-10-2+ - Mini-Circuits PCB footprint - Other - Other - BH292_2025-1.1
click to zoom
3D Models
JDC-10-2+ - Mini-Circuits  - 3D model - Other - BH292_2025-1.1
click to zoom

JDC-10-2+ Details

  • Manufacturer Part Number:

    JDC-10-2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BH292, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.59

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.5 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    750 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.13
