JEBT-4R2GW+ - Mini-Circuits

Description: Surface Mount BIAS TEE, 50Ω, Wideband, 0.1 to 4200 MHz

Download JEBT-4R2GW+ Model

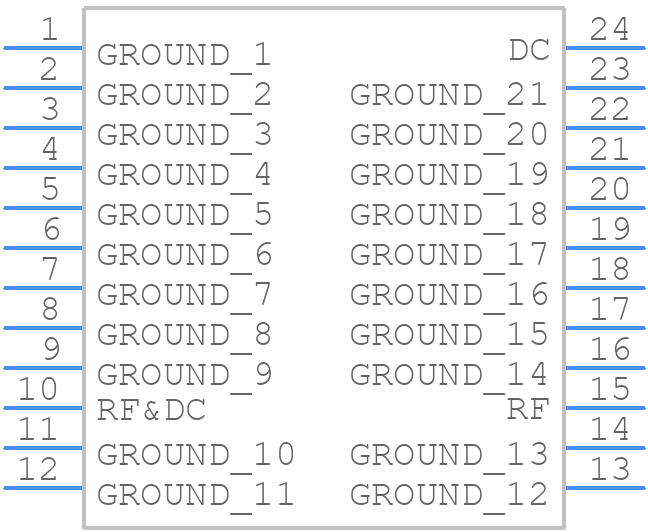

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

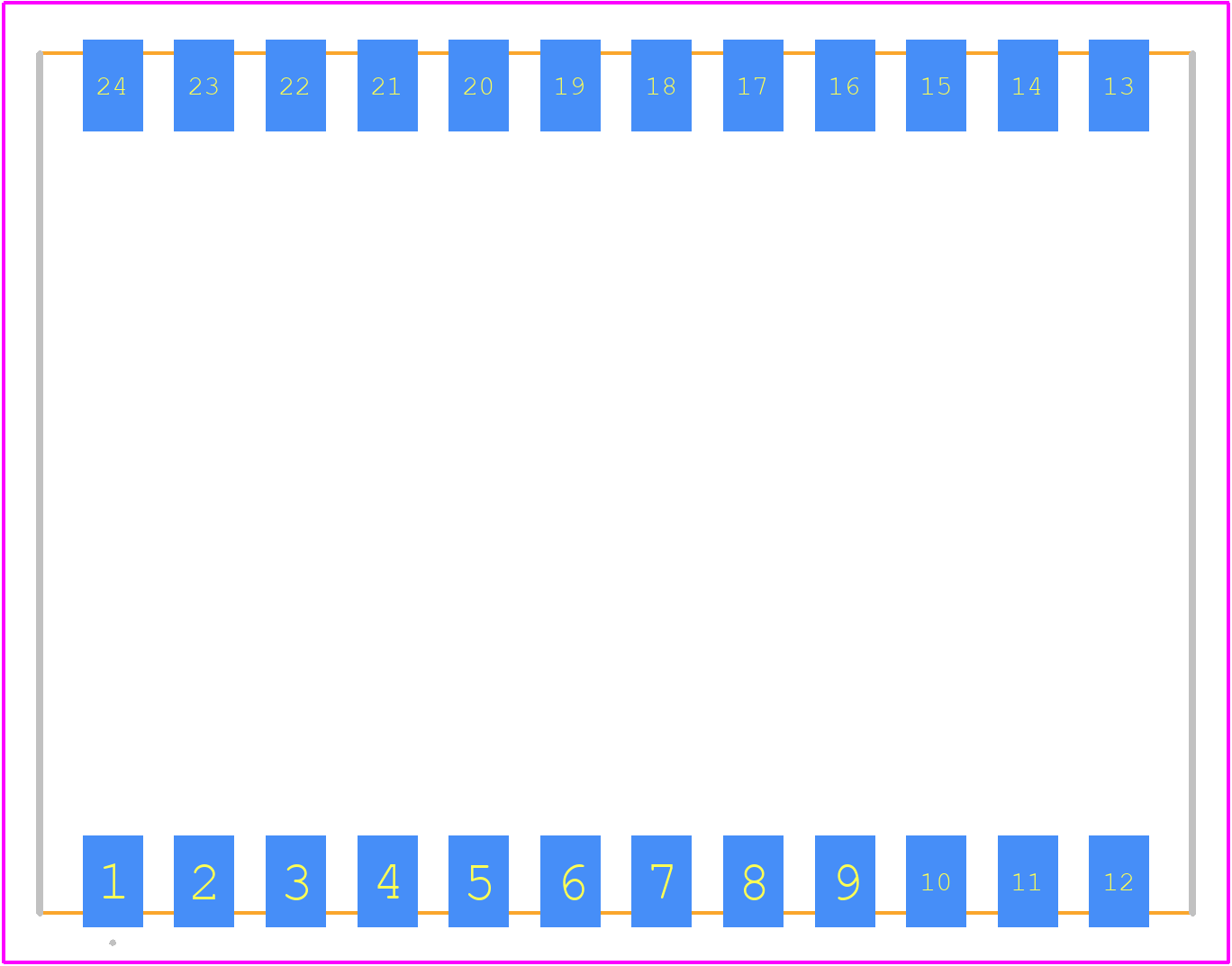

PCB Footprints
JEBT-4R2GW+ - Mini-Circuits PCB footprint - Other - Other - JEBT-4R2GW+-2
click to zoom
3D Models
JEBT-4R2GW+ - Mini-Circuits  - 3D model - Other - JEBT-4R2GW+-2
click to zoom

JEBT-4R2GW+ Details

  • Manufacturer Part Number:

    JEBT-4R2GW+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • DC Voltage-Max:

    25 V

  • Insertion Loss-Max:

    1.6 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    0.1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    MONITOR TEE DC BLOCK

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.16

JEBT-4R2GW+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The JEBT-4R2GW+ has a maximum junction temperature of 150°C. To handle the heat, ensure good thermal conductivity by using a thermal pad or thermal tape on the bottom of the device, and connect it to a heat sink or a metal plate on the PCB. Additionally, keep the device away from other heat-sensitive components.
  • The maximum input power rating for the JEBT-4R2GW+ is 1W. Exceeding this rating can cause permanent damage to the device. Ensure that the input power is within the specified range to maintain the device's reliability and performance.
  • Yes, the JEBT-4R2GW+ can be used in a push-pull configuration. However, it's essential to ensure that the two devices are properly matched and biased to avoid uneven current distribution, which can lead to reduced performance and reliability.
  • The recommended biasing scheme for the JEBT-4R2GW+ is a voltage-controlled current source. A voltage regulator can be used to set the bias voltage, and a current-limiting resistor can be used to set the bias current. The bias voltage should be between 2.5V and 5.5V, and the bias current should be between 10mA and 50mA.
