JHL0624S05 - XP POWER

Description: XP Power Through Hole 6W Isolated DC-DC Converter, Vin 20 → 30 V dc Medical Approved, I/O isolation 4kV ac

Download JHL0624S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

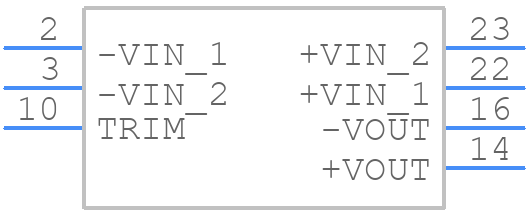

Symbol
JHL0624S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JHL0624S05 - XP POWER PCB footprint - Other - Other - JHL0624S05-1
click to zoom
3D Models
JHL0624S05 - XP POWER - 3D model - Other - JHL0624S05-1
click to zoom

JHL0624S05 Details

  • Manufacturer Part Number:

    JHL0624S05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    ANSI, CSA, EN, IEC, UL

  • Efficiency (Main Output):

    78%

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    20 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Line Regulation-Max:

    0.3%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER VOLTAGE; OVER LOAD; SHORT CIRCUIT

  • Screening Level:

    IEC 60601-1, Two MOPP

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.007 s

  • Width:

    20.32 mm

JHL0624S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JHL0624S05 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • While the JHL0624S05 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • The JHL0624S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module is used within its specified ratings.
  • To minimize electromagnetic interference (EMI) and ensure optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the module and using a solid ground plane.
  • While it's technically possible to parallel multiple JHL0624S05 modules, it's not recommended as it may lead to uneven current sharing and reduced reliability. Instead, consider using a higher-power module or consulting with XP Power's application engineers for custom solutions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JHL0624S05 Overview

Use the download button to access the JHL0624S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JHL06, or try a keyword search, such as Power Supply Modules
